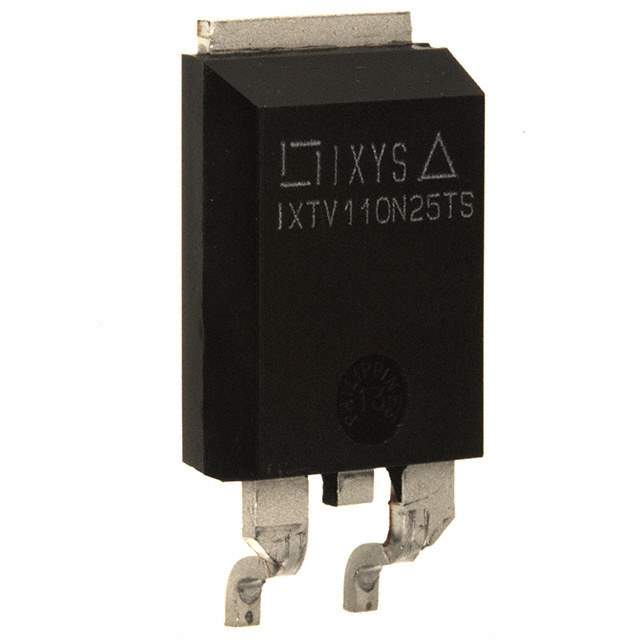

IXTV110N25TS Real Image
Same model may have multiple batches, images only for reference.

IXTV110N25TS

Part No IXTV110N25TS
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 250V 110A PLUS220SMD / N-Channel 250 V 110A (Tc) 694W (Tc) Surface Mount PLUS-220SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr IXYS
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 250 V
Current - Continuous Drain (Id) @ 25°C 110A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 24mOhm @ 55A, 10V
Vgs(th) (Max) @ Id 4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 157 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 9400 pF @ 25 V
Power Dissipation (Max) 694W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PLUS-220SMD
Package / Case PLUS-220SMD
Base Product Number IXTV110
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1346817-IXTV110N25TS
Ultra Librarian 3D Model Ultra Librarian IXTV110N25TS CAD Model

Description

IXTV110N25TS is an obsolete electronic component from IXYS.

  • Type: N-channel MOSFET
  • Drain to Source Voltage: 250V
  • Current - Continuous Drain: 110A @ 25°C
  • Power Dissipation: 694W (Tc)
  • Gate Charge (Qg): 157 nC @ 10V
  • Rds On (Max) @ Id, Vgs: 24mOhm @ 55A, 10V
  • Vgs(th) @ Id: 4.5V @ 1mA
  • Package: PLUS-220SMD
  • Technology: MOSFET (Metal Oxide)
  • Supply Voltage: 4.5V to 35V
  • Drive Voltage (Max Rds On, Min Rds On): 10V
