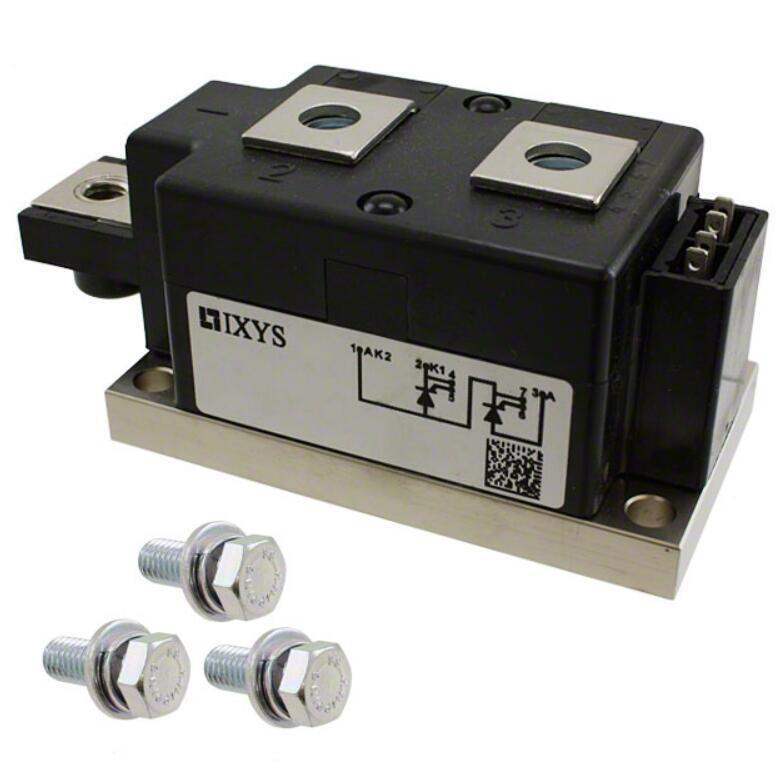

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1201166-MCC255-16IO1
Win Source Part Number Cross
Manufacturer IXYS
Category Discrete Semiconductor Products Thyristors SCRs - Modules
Package Box
Product Status Active
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 250 A
Current - On State (It (RMS)) (Max) 450 A
Ultra Librarian 3D Model Ultra Librarian MCC255-16IO1 CAD Model

Description

The SCR module from IXYS is a high-performance component used in various applications that require voltage control.

  • SCR Configuration: Series
  • Voltage-Off State: 1.6 kV
  • Current-On State (It (AV)): 250 A
  • Current-On State (It (RMS)): 450 A
  • Package: Box
  • Product Status: Active
