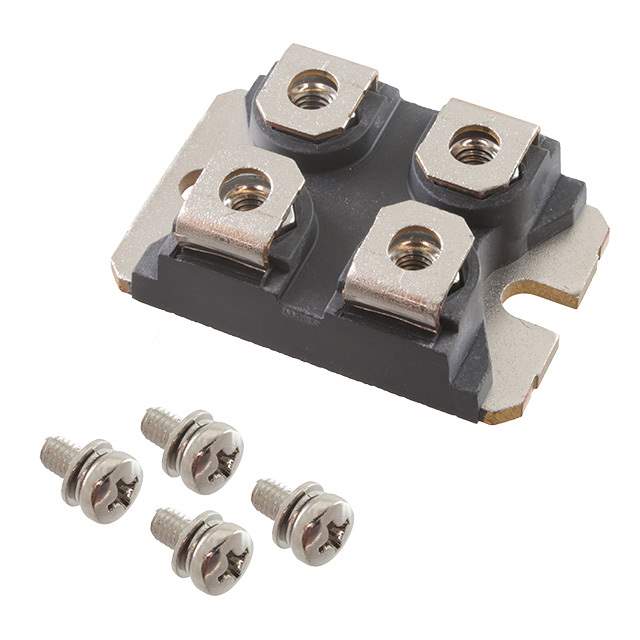

MMO62-16IO6

Part No MMO62-16IO6
Manufacturer IXYS
Catalog SCRs - Single - Modules
Description MODULE AC CTLR 1600V SOT-227B / SCR Module 1.6 kV 39 A 1-Phase Controller - All SCRs Chassis Mount SOT-227-4, miniBLOC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs - Modules
Manufacturer IXYS
Packaging Tube
Structure 1-Phase Controller - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 25 A
Current - On State (It (RMS)) (Max) 39 A
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Gate Trigger (Igt) (Max) 100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 400A, 430A
Current - Hold (Ih) (Max) 100 mA
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Case / Package SOT-227-4, miniBLOC
Base Product Number MMO62
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Standard Package 10
Win Source Part Number 1325563-MMO62-16IO6
Ultra Librarian 3D Model Ultra Librarian MMO62-16IO6 CAD Model

Description

The IXYS 1325563-MMO62-16IO6 is a 1-phase controller - all SCR type electronic component with two SCRs and a voltage off state of 1.6kV.

  • Voltage Off State: 1.6kV
  • On-State Current: 25A
  • On-State Current (RMS): 39A
  • Non-Repetitive Surge Current: 400A @ 50Hz, 430A @ 60Hz
  • Voltage Gate Trigger: 1.5V
  • Current Gate Trigger: 100mA
  • Current Hold: 100mA
  • Temperature Range: -40°C to 150°C
