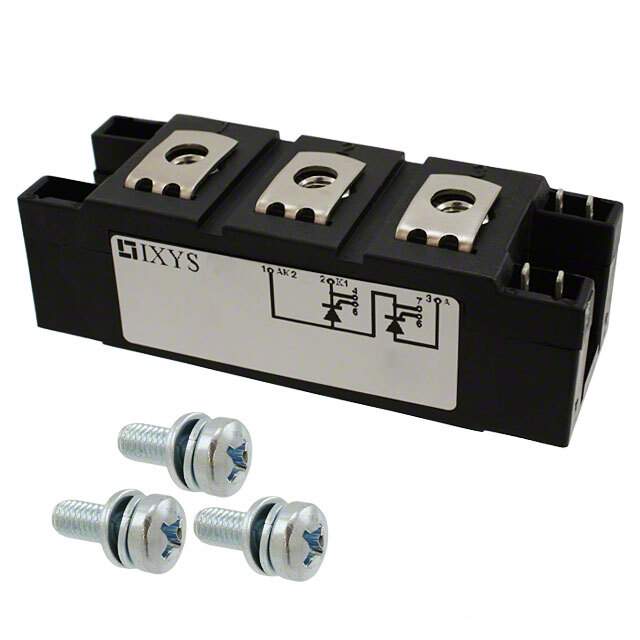

MCD162-16IO1 Real Image
Same model may have multiple batches, images only for reference.

MCD162-16IO1

Part No MCD162-16IO1
Manufacturer IXYS
Catalog SCRs - Single - Modules
Description Thyristor Modules Thyristor/Diode Modules | MOD THYRISTOR/DIODE 1600V Y4-M6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Bulk
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 1.6kV
Current - On State (It (AV)) (Maximum) 190A
Current - On State (It (RMS)) (Maximum) 300A
Voltage - Gate Trigger (Vgt) (Maximum) 2.5V
Current - Gate Trigger (Igt) (Maximum) 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 6000A, 6400A
Current - Hold (Ih) (Maximum) 200mA
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Chassis Mount
Manufacturer Package Y4-M6
Family Part Number MC*162
Manufacturer Pack Quantity 6
MSL Level Not Applicable
Win Source Part Number 1220594-MCD162-16IO1
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MCD162-16IO1 CAD Model

Description

The IXYS MCD162-16IO1 is a series connection SCR/diode with an off state voltage of 1.6kV and a non-repetitive surge current of 6000A/6400A.

  • Configuration: One SCR and one diode
  • Current: 300A
  • Gate Trigger Voltage: 2.5V
  • Maximum Gate Trigger Current: 150mA
  • Maximum Holding Current: 200mA
  • Maximum On-State Current: 190A
  • Package: Y4-M6
  • Mounting: Chassis
  • Operating Temperature Range: -40°C to 125°C
  • Supply and Demand: Limited
