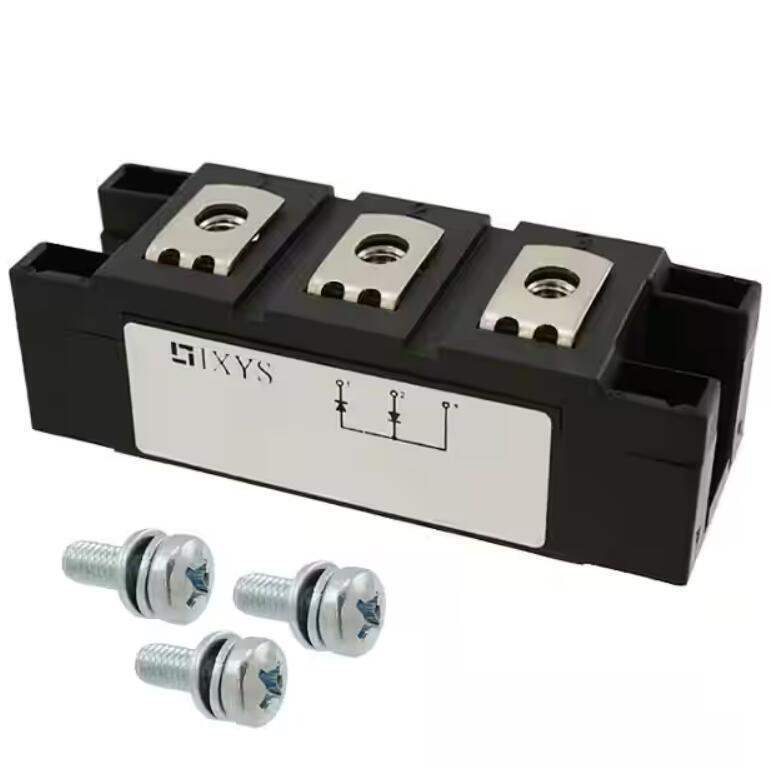

MDD142-16N1IXYS
Same model may have multiple batches, images only for reference.

MDD142-16N1

Part No MDD142-16N1
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.6KV 165A Y4-M6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1194508-MDD142-16N1
Win Source Part Number Cross
Manufacturer IXYS
Package Box
Product Status Active
Diode Configuration 1 Pair Series Connection
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) (per Diode) 165A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 300 A
Current - Reverse Leakage @ Vr 20 mA @ 1600 V
Ultra Librarian 3D Model Ultra Librarian MDD142-16N1 CAD Model

Description

The IXYS standard diode is a reliable and high-performance component for a variety of applications.

  • Maximum Reverse Voltage: 1600 V
  • Forward Voltage: 1.3 V @ 300 A
  • Diode Configuration: 1 Pair Series Connection
  • Average Rectified Current: 165 A
