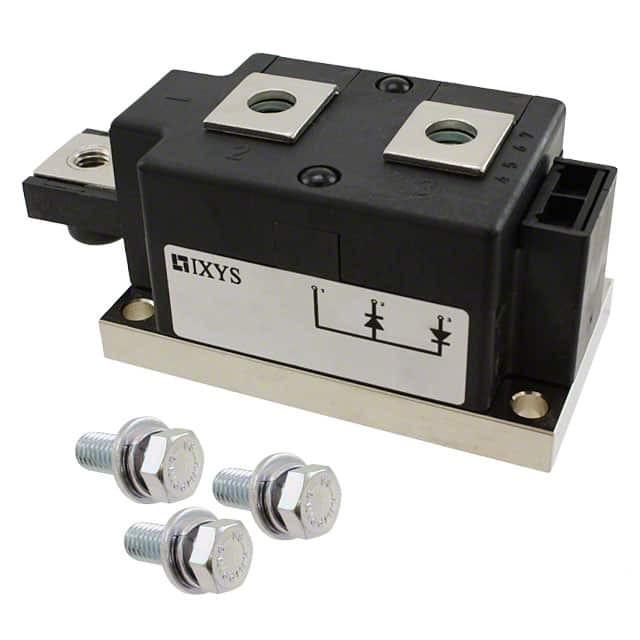

MDD255-12N1
Same model may have multiple batches, images only for reference.

MDD255-12N1

Part No MDD255-12N1
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.2KV 270A Y1-CU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr IXYS
Package Box
Product Status Active
Diode Configuration 1 Pair Series Connection
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 270A
Voltage - Forward (Vf) (Max) @ If 1.4 V @ 600 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 30 mA @ 1200 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Y1-CU
Supplier Device Package Y1-CU
Base Product Number MDD255
Standard Package 3 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 846855-MDD255-12N1
Ultra Librarian 3D Model Ultra Librarian MDD255-12N1 CAD Model

Description

The MDD255-12N1 is a Diode Array designed for use in Discrete Semiconductor Products, specifically in Diodes - Rectifiers - Diode Arrays.

  • Voltage - DC Reverse (Vr) (Max): 1200 V
  • Voltage - Forward (Vf) (Max) @ If: 1.4 V @ 600 A
  • Current - Reverse Leakage @ Vr: 30 mA @ 1200 V
  • Diode Configuration: 1 Pair Series Connection
  • Mounting Type: Chassis Mount
