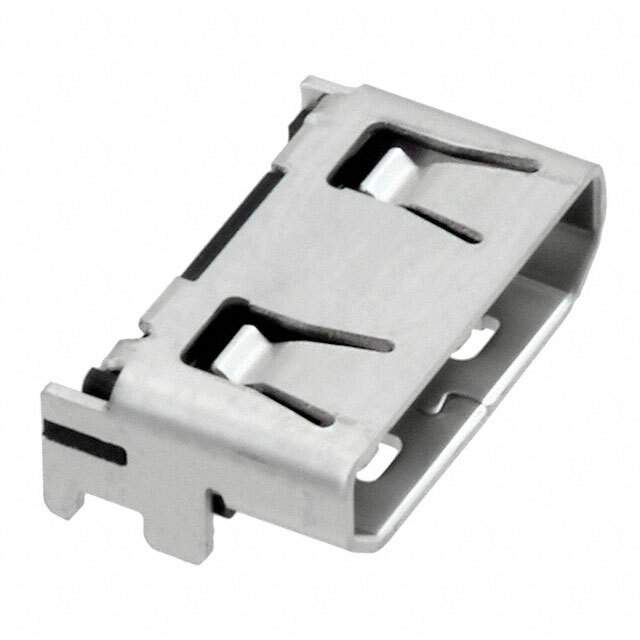

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr JAE Electronics
Series DC2
Package Tape & Reel
Connector Type HDMI - Mini
Number of Contacts 19
Gender Receptacle
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Temperature Range - Operating -20°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.5A per Contact
Mating Cycles 5000
Shielding Unshielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number DC2R019J
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 670-2860-2,670-2860-1,670-2860-6
Standard Package 1,700
Win Source Part Number 1055246-DC2R019JA7R1700
Ultra Librarian 3D Model Ultra Librarian DC2R019JA7R1700 CAD Model

Description

The JAE Electronics DC2R019J series is a 19-position HDMI-mini connector with solder termination and gold contact finish.

  • Part Number: 1055246-DC2R019JA7R1700
  • Packaging: Tape and Reel
  • Pieces per Package: 1700
  • Shielding: Unshielded
  • Material Flammability Rating: UL94 V-0
  • Number of Ports: 1
  • Mounting Feature: Horizontal
  • Mating Cycle: 5000
  • Mounting: Surface mount with right angle or through hole
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
  • Alternative Parts: 7-188275-4, 3-640442-5, 1954097-1, 90059-0007, and 105017-0001
