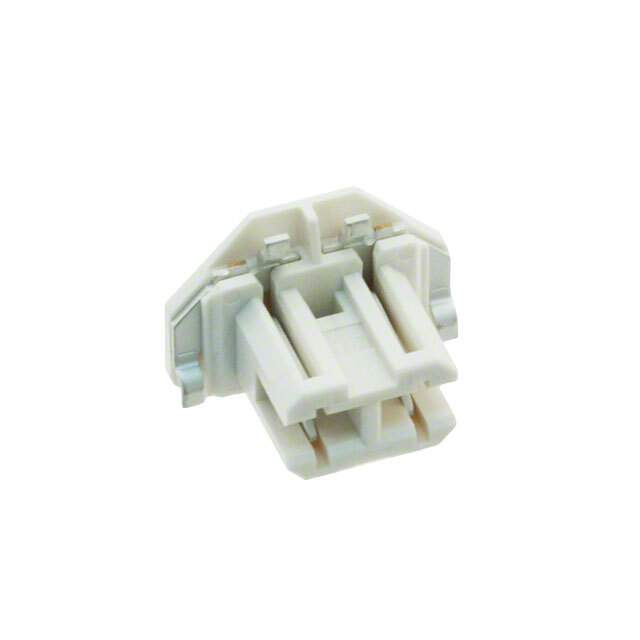

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features SSL Connector 2 Position Receptacle Board to Board - Card Edge 0.142" (3.60mm) Solder
Manufacturer JAE Electronics
Series ES3
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount, Bottom Entry, Through Board
Family Name ES3B002W
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 670-2575-6, -ES3B002WF1R1000, 670-2575-1, 670-2575-2
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871123-ES3B002WF1R1000
Ultra Librarian 3D Model Ultra Librarian ES3B002WF1R1000 CAD Model

Description

The JAE Electronics ES3B002WF1R1000 is a connector designed for use in electronic devices.

  • Series: ES3 series
  • Popularity: medium popularity rating
  • Temperature Range: -40°C to 105°C
  • Features: SSL connector 2 position receptacle board to board - card edge 0.142" (3.60mm) solder
  • Mounting: surface mount, bottom entry, through board mounting
  • Quantity: reel of 1000
  • Estimated Production Lead Time: 13 weeks
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
