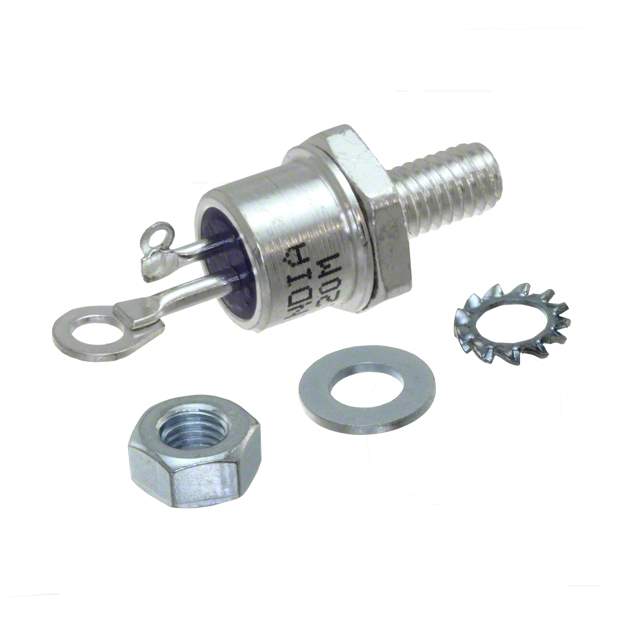

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Voltage - Off State 600V
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 60mA
Voltage - On State (Vtm) (Maximum) 1.75V
Current - On State (It (AV)) (Maximum) 16A
Current - On State (It (RMS)) (Maximum) 35A
Current - Hold (Ih) (Maximum) 130mA
Current - Off State (Maximum) 10mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 340A, 360A
SCR Type Standard Recovery
Operating Temperature Range -65°C ~ 125°C
Mounting Chassis, Stud Mount
Package TO-208AA, TO-48-3, Stud
Manufacturer Package TO-208AA (TO-48)
Win Source Part Number 760568-VS-16RIA60
Popularity Medium
Supply and Demand Status Limited
Family Name 16RIA60
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-16RIA60 CAD Model

Description

The VS-16RIA60 is a standard recovery SCR manufactured by Vishay Semiconductor Diodes Division.

  • Voltage Off State: 600V
  • Current On State: 35A
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Applications: Motor Control, Power Supplies, Lighting Control
