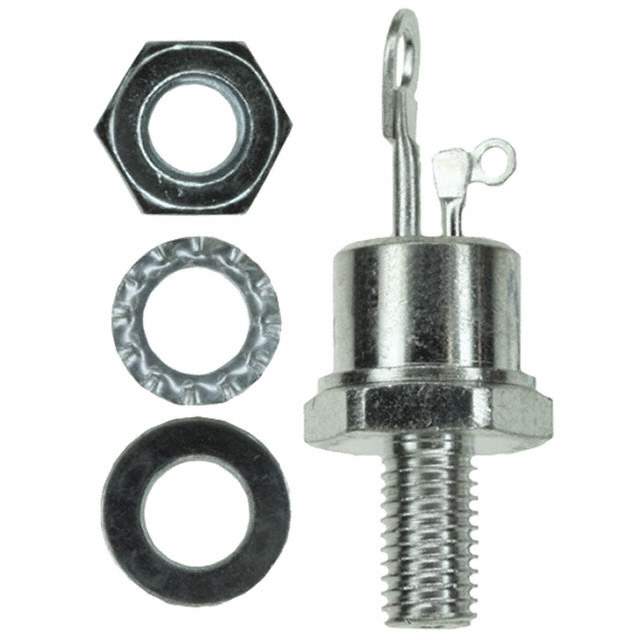

Same model may have multiple batches, images only for reference.

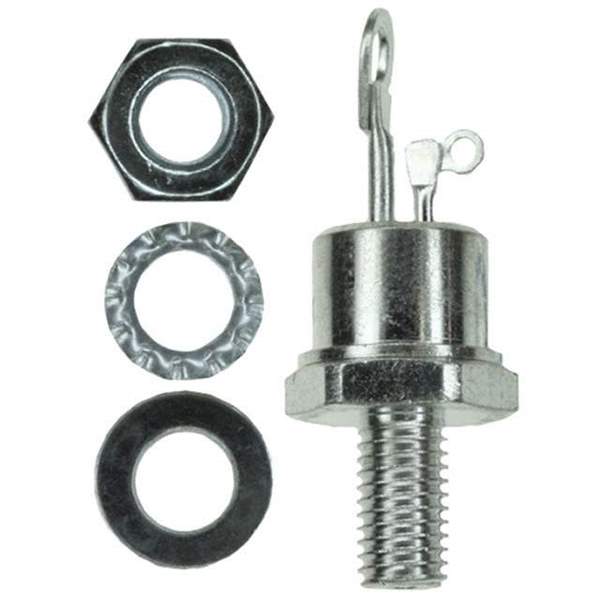

VS-25RIA120 Real Image
Same model may have multiple batches, images only for reference.

VS-25RIA120

Part No VS-25RIA120
Manufacturer Vishay
Catalog SCRs - Single
Description SCR MED POWER 1200V 25A TO48
Datasheet
VS-25RIA120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Voltage - Off State 1200V
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 60mA
Voltage - On State (Vtm) (Maximum) 1.7V
Current - On State (It (AV)) (Maximum) 25A
Current - On State (It (RMS)) (Maximum) 40A
Current - Hold (Ih) (Maximum) 130mA
Current - Off State (Maximum) 10mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 420A, 440A
SCR Type Standard Recovery
Operating Temperature Range -65°C ~ 125°C
Mounting Chassis, Stud Mount
Package TO-208AA, TO-48-3, Stud
Manufacturer Package TO-208AA (TO-48)
Win Source Part Number 762011-VS-25RIA120
Popularity Medium
Supply and Demand Status Limited
Family Name VS-25RIA120
ECCN EAR99
Country of Origin India
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-25RIA120 CAD Model

Description

The VS-25RIA120 is a Vishay Semiconductor Diodes Division manufactured electronic component from Vishay Semiconductor Diodes Division.

  • Operating Temperature Range: -65°C ~ 125°C
  • Package Type: TO-208AA, TO-48-3, Stud
  • Mounting Type: Chassis Mount, Stud Mount
  • Voltage - Off State: 1200V
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 420A, 440A
  • SCR Type: Standard Recovery
  • Manufacturer Package: TO-208AA (TO-48)
  • Current - On State (It (RMS)) (maximum): 40A
  • Voltage - Gate Trigger (Vgt) (maximum): 2V
  • Current - Gate Trigger (Igt) (maximum): 60mA
  • Current - Hold (Ih) (maximum): 130mA
  • Voltage - On State (Vtm) (maximum): 1.7V
  • Current - On State (It (AV)) (maximum): 25A
  • Current - Off State (maximum): 10mA
  • Alternative Parts: SKT24/14E, SKT24/12E
  • ECCN: EAR99
  • Estimated EOL Date: 2026
  • Supply and Demand Status: Limited
