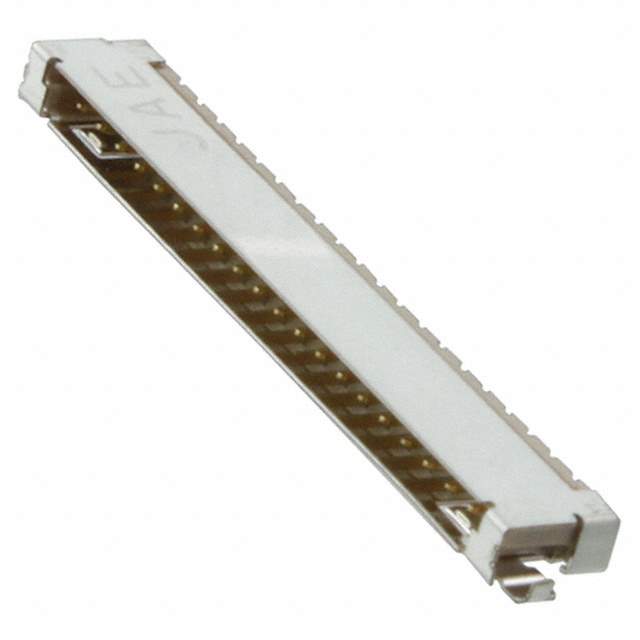

FI-SE20P-HFE-E3000 Real Image
Same model may have multiple batches, images only for reference.

FI-SE20P-HFE-E3000

Part No FI-SE20P-HFE-E3000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 1.25MM 20POS SMD R/A
Datasheet
FI-SE20P-HFE-E3000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Series FI
Packaging Reel package
Connector Type Receptacle
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 20
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Friction Lock
Insulation Height 0.083" (2.10mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish - Post Tin or Tin-Alloy
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Shielded, Solder Retention
Operating Temperature Range -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating 1A per Contact
Voltage Rating 200V
Mated Stacking Heights 2.11mm
Win Source Part Number 774584-FI-SE20P-HFE-E3000
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Introduction Date July 26, 2015
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian FI-SE20P-HFE-E3000 CAD Model

Description

The JAE Electronics FI series connector is a 20-position receptacle connector with male pin contact type.

  • Voltage Rating: 200V
  • Current Rating: 1A @ contact
  • Shielding: yes
  • Retention Feature: solder
  • Contact Material: copper alloy
  • Material Flammability Rating: UL94 V-0
  • Style: board to cable/wire
  • Mating Stacking Height: 2.11mm
  • Mounting: surface mount
  • Fastening Type: right angle
  • Insulation Material: liquid crystal polymer (LCP), glass filled
  • Insulation Color: beige
  • Contact Finish-Mating: gold
  • Contact Finish-Post: tin or tin-alloy
  • Shrouding: 4 walls
  • Insulation Height: 0.083" (2.10mm)
  • Applications: connectors and interconnects
