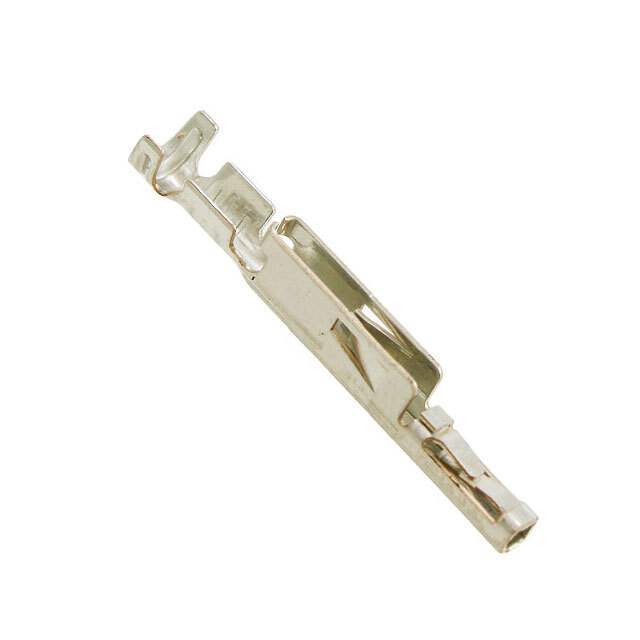

IL-AG5-C1-5000JAE Electronics
Same model may have multiple batches, images only for reference.

IL-AG5-C1-5000

Part No IL-AG5-C1-5000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN SOCKET 18-22AWG CRIMP TIN
Datasheet
IL-AG5-C1-5000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204320-IL-AG5-C1-5000
Manufacturer JAE Electronics
Category Connectors, Interconnects- Rectangular Connectors- Rectangular Connector Contacts
Series IL-AG5
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-22 AWG
Contact Finish Tin
Base Product Number IL-AG5-C
Ultra Librarian 3D Model Ultra Librarian IL-AG5-C1-5000 CAD Model

Description

Socket Contact Tin 18-22 AWG Crimp
