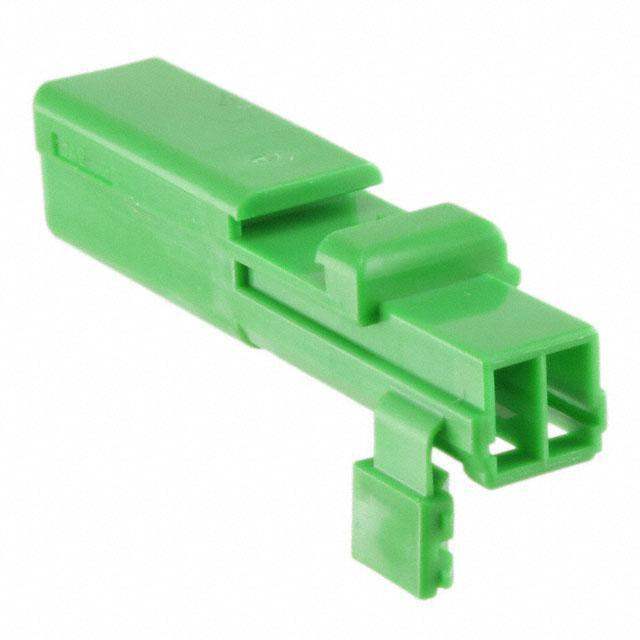

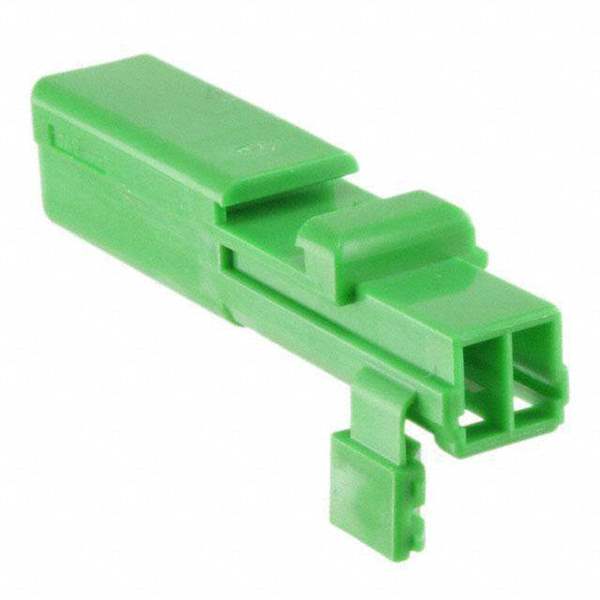

IL-AG9-2P-S3C1-B JAE Electronics
Same model may have multiple batches, images only for reference.

IL-AG9-2P-S3C1-B

Part No IL-AG9-2P-S3C1-B
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description Interconnect Rectangular
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197027-IL-AG9-2P-S3C1-B
Manufacturer JAE Electronics
Category Connectors, Interconnects- Rectangular Connectors -Rectangular Connector Housings
Series IL-AG9
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Male Pin
Pitch 0.098" (2.50mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Ultra Librarian 3D Model Ultra Librarian IL-AG9-2P-S3C1-B CAD Model

Description

The IL-AG9 is a rectangular connector housing from JAE Electronics.

  • Pitch: 0.098" (2.50mm)
  • Connector Type: plug connector
  • Contact Gender: male pin
  • Packaging: bulk
  • Mounting Type: free-hanging (in-line)
  • Product Status: active
