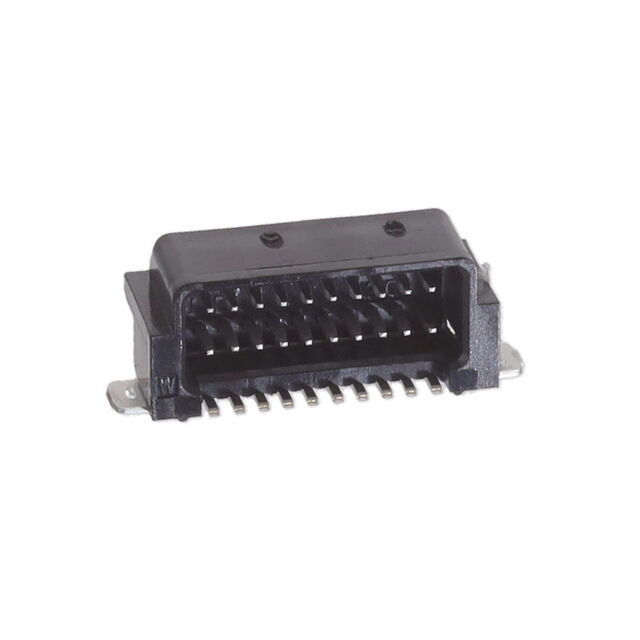

IL-WX-20PB-HF-HD-S-B-E1000E JAE Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

IL-WX-20PB-HF-HD-S-B-E1000E

Part No IL-WX-20PB-HF-HD-S-B-E1000E
Manufacturer JAE Electronics
Catalog Rectangular Connectors - Headers, Male Pins
Description CONN HEADER SMD R/A 20POS 0.8MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsRectangular ConnectorsHeaders, Male Pins
Mfr JAE Electronics
Series IL-WX
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.031" (0.80mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.059" (1.50mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.071" (1.80mm)
Insulation Height 0.185" (4.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Features Board Guide, Solder Retention
Operating Temperature -40°C ~ 85°C
Insulation Color Black
Current Rating (Amps) 0.5A per Contact
Base Product Number IL-WX-20
Ultra Librarian 3D Model Ultra Librarian IL-WX-20PB-HF-HD-S-B-E1000E CAD Model
