Same model may have multiple batches, images only for reference.

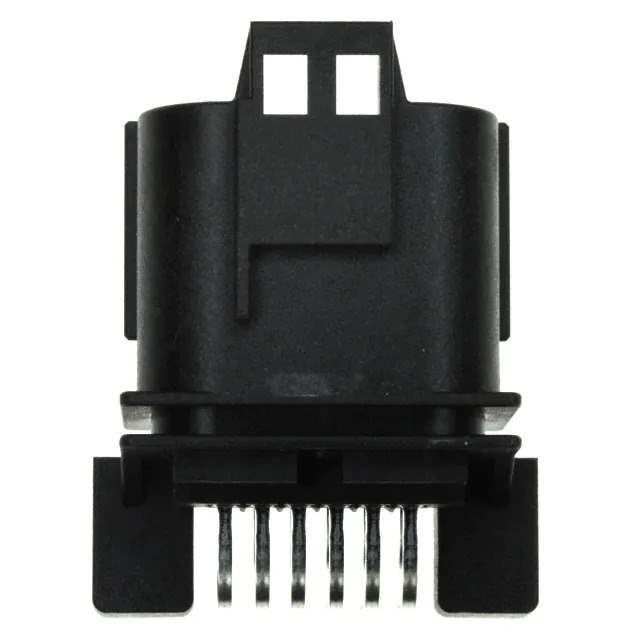

MX23A12NF1 Real Image
Same model may have multiple batches, images only for reference.

MX23A12NF1

Part No MX23A12NF1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 2.5MM / Connector Header Through Hole, Right Angle 12 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX23A
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.173" (4.40mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.122" (3.10mm)
Insulation Height 0.720" (18.30mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 125°C
Ingress Protection Waterproof
Insulation Color Black
Current Rating (Amps) 3A
Applications Automotive
Base Product Number MX23A12N
Standard Package 200 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 928536-MX23A12NF1
Ultra Librarian 3D Model Ultra Librarian MX23A12NF1 CAD Model

Description

The MX23A12NF1 is a male pin header connector from JAE Electronics.

  • Series: MX23A
  • Positions: 12
  • Feature: Board Guide
  • Mounting Type: Through Hole, Right Angle
  • Contact Finish: Tin
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Temperature Range: -40°C to 125°C
  • Ingress Protection: Waterproof
  • Application: Automotive
  • Current Rating: 3A
  • Package: Tray
  • Standard Package Quantity: 200 pcs
  • Market Status: Active
  • Category: Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
