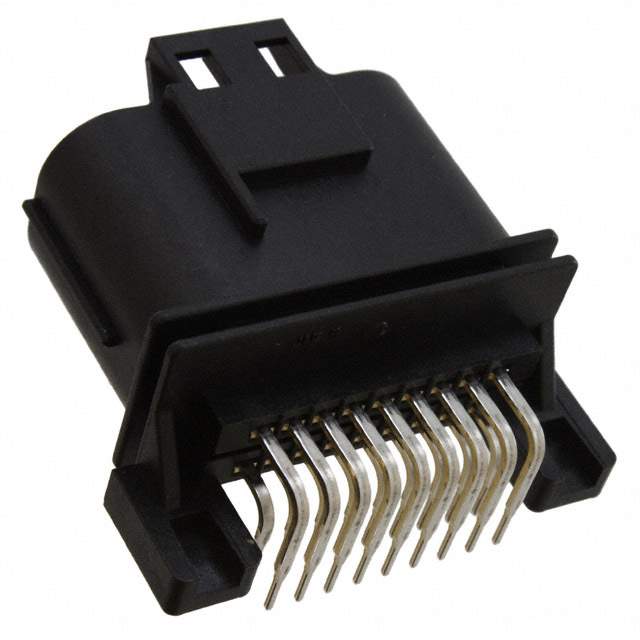

MX23A18NF1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features Connector Header Through Hole, Right Angle 18 position 0.098" (2.50mm)
Manufacturer JAE Electronics
Series MX23A
Package Tray
Operating Temperature Range -40°C ~ 125°C
Mounting Through Hole, Right Angle
Family Name MX23A18N
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 670-2462, MX23A18NF1-ND
Quantity per package 160
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 886572-MX23A18NF1
Ultra Librarian 3D Model Ultra Librarian MX23A18NF1 CAD Model

Description

The JAE Electronics 886572-MX23A18NF1 is a connector header through-hole with a right angle of 18 positions and a pitch of 0.098 inches (2.50mm).

  • Series: MX23A
  • Supply and Demand: Limited
  • Popularity: Medium
  • Package: Tray
  • Quantities per Package: 160
  • Estimated Production Lead Time: 13 Weeks
  • MSL Level: 1 (Unlimited)
