Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Accessories
Mfr JAE Electronics
Series MX23A
Package Bulk
Accessory Type Cap (Cover), Front
Number of Positions 26
For Use With/Related Products MX23A Series
Base Product Number MX23A26X
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Other Names 670-1688
Standard Package 1,500

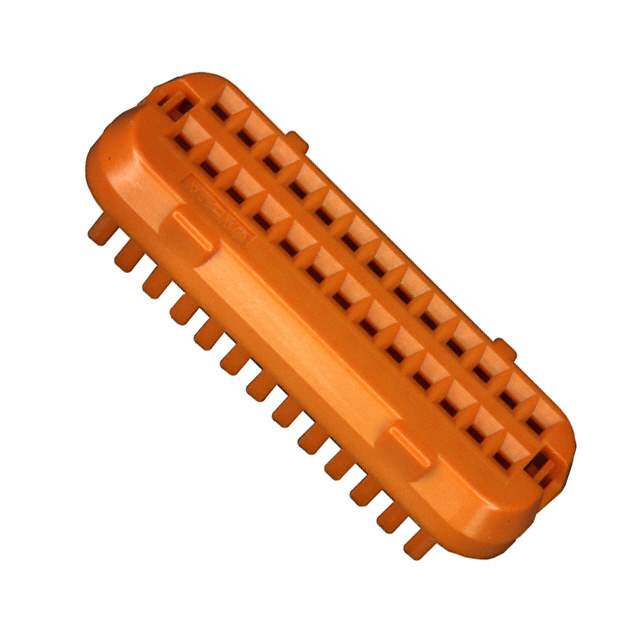

Win Source Part Number 1183713-MX23A26XF1
Ultra Librarian 3D Model Ultra Librarian MX23A26XF1 CAD Model

Description

MX23A26XF1 from JAE Electronics is a rectangular connector intended for board-to-board or wire-to-board interconnection use where dependable signal transfer and compact integration are important. In electronics design, connectors in this category are commonly selected for industrial equipment, embedded control systems, communications hardware, consumer devices, and other assemblies that require repeatable mating performance and organized multi-circuit connectivity. As a JAE Electronics part, MX23A26XF1 may appeal to engineers seeking a connector solution from an established interconnect manufacturer, especially in designs that prioritize maintainability, modular assembly, and sourcing continuity. The current lifecycle status for this part is information not available, so design teams should verify whether it is active, NRND, or obsolete before committing to new production. RoHS compliance information is also not available from the provided input. Engineers and procurement teams should confirm environmental compliance, latest documentation, and approved application fit through official JAE Electronics datasheets or direct manufacturer support.
