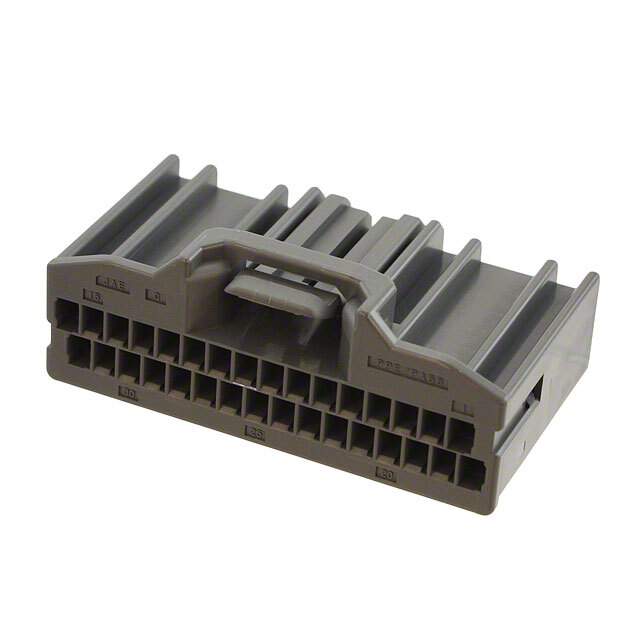

MX34032SF1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JAE Electronics
Series MX34
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 32
Pitch 0.087" (2.20mm)
Number of Rows 2
Row Spacing 0.118" (3.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Gray
Note Contacts Not Included
Base Product Number MX340
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Names -MX34032SF1,670-2297
Standard Package 360
Win Source Part Number 1202577-MX34032SF1
Ultra Librarian 3D Model Ultra Librarian MX34032SF1 CAD Model

Description

The MX34032SF1 is a rectangular connector housing that is part of the MX34 series manufactured by JAE Electronics.

  • Series: MX34
  • Positions: 32 position
  • Connector Type: Receptacle
  • Pitch: 0.087" (2.20mm)
  • Color: Gray
  • Contact Type: Female Socket
  • Temperature Range: -40°C to 85°C
  • Contact Termination: Crimp
  • Mounting: Free Hanging (In-Line)
  • Win Source Part Number: 1202577-MX34032SF1
  • Category: Connectors and Interconnects
  • Popularity: Medium
