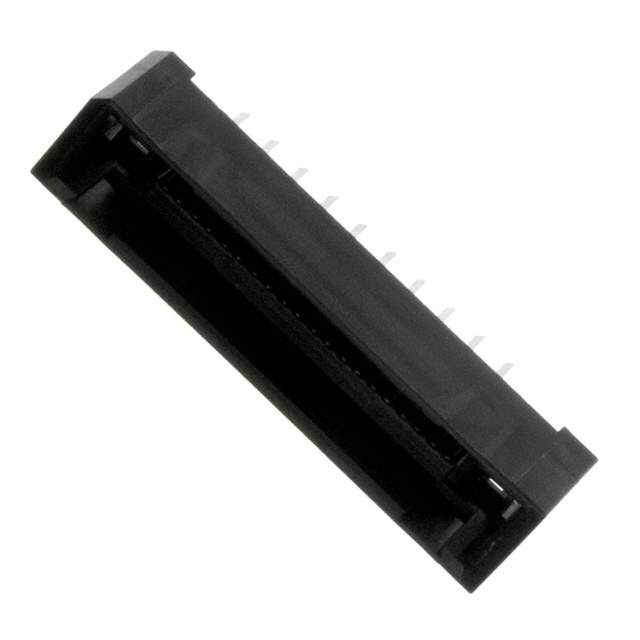

TX25-40P-6ST-H1E Real Image
Same model may have multiple batches, images only for reference.

TX25-40P-6ST-H1E

Part No TX25-40P-6ST-H1E
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG 40POS VERT GOLD  /  40 Position Connector Plug, Center Strip Contacts Through Hole Gold
Datasheet
TX25-40P-6ST-H1E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series TX25
Package Tray
Connector Type Plug, Center Strip Contacts
Number of Positions 40
Pitch 0.050" (1.27mm)
Number of Rows 2
Mounting Type Through Hole
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 12mm, 16mm, 18mm
Height Above Board 0.362" (9.20mm)
Base Product Number TX25-40P
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 670-1443
Standard Package 864
Win Source Part Number 1173179-TX25-40P-6ST-H1E
Ultra Librarian 3D Model Ultra Librarian TX25-40P-6ST-H1E CAD Model

Description

The JAE Electronics TX25-40P-6ST-H1E is a high-performance connector designed for use in a variety of applications, including telecommunications, data communications, and wireless communication.
