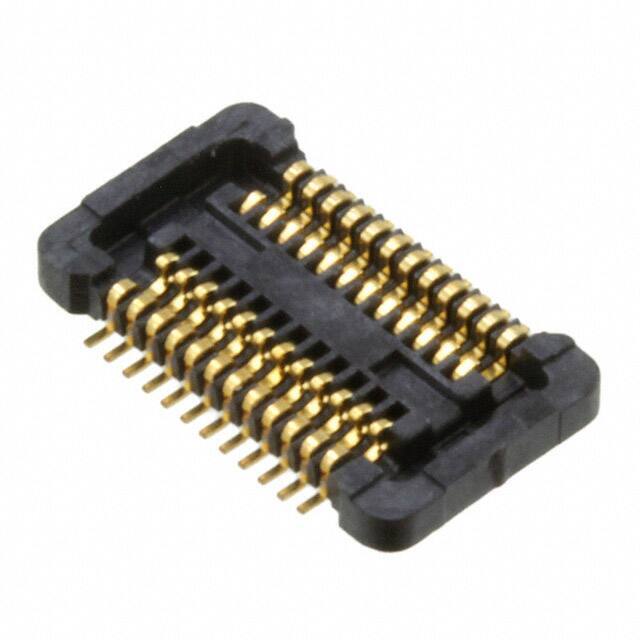

Part No WH1S024WA1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 24POS SMD GOLD
Datasheet
WH1S024WA1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series WH1
Package Tray
Product Status Obsolete
Connector Type Receptacle, Center Strip Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 1mm
Height Above Board 0.037" (0.95mm)
Base Product Number WH1S0
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 903252-WH1S024WA1
Ultra Librarian 3D Model Ultra Librarian WH1S024WA1 CAD Model

Description

The WH1S024WA1 is a rectangular connector array from JAE Electronics.

  • Series: WH1
  • Positions: 24
  • Pitch: 0.016" (0.40mm)
  • Type: Receptacle with center strip contacts
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00μin (0.100μm)
  • Mounting: Surface Mountable
  • Height Above Board: 0.037" (0.95mm)
  • Package: Tray
  • Mated Stacking Height: 1mm
  • Product Status: Obsolete
  • MSL: 1 (unlimited)
