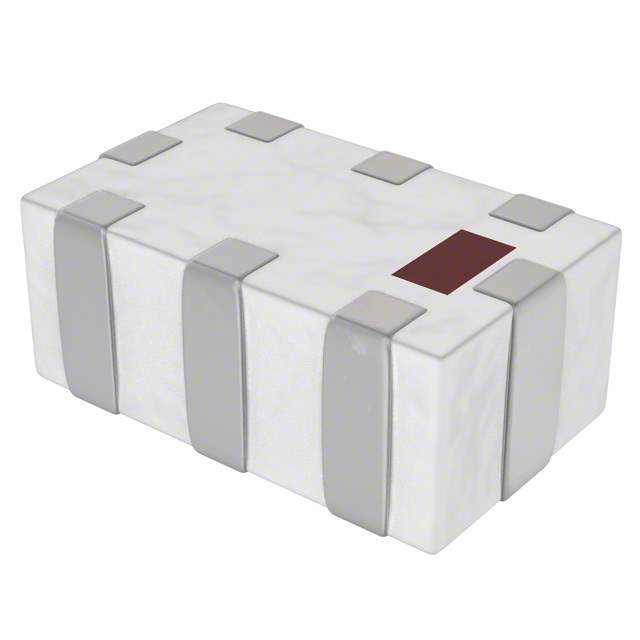

0910CF15B0100001E Real Image
Same model may have multiple batches, images only for reference.

0910CF15B0100001E

Part No 0910CF15B0100001E
Manufacturer Johanson Technology Inc.
Catalog RF Directional Coupler
Description RF DIR COUPLER 860-960MHZ 0805 / RF Directional Coupler General Purpose 860 ~ 960MHz 10 ± 1dB 0805 (2012 Metric)
Datasheet
0910CF15B0100001E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless>RF Directional Coupler
Mfr Johanson Technology Inc.
Series -
Package Tape & Reel
Coupler Type Coupler, With Filter
Frequency 860 ~ 960MHz
Coupling Factor 10 ± 1dB
Applications General Purpose
Insertion Loss 1.2dB
Power - Max -
Isolation 30dB
Return Loss 20dB
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 4,000 pcs
Win Source Part Number 1380440-0910CF15B0100001E
Ultra Librarian 3D Model Ultra Librarian 0910CF15B0100001E CAD Model

Description

The 1197577 is an RF directional coupler designed for general-purpose applications.

  • Manufacturer: Johanson Technology Inc.
  • Frequency Range: 860MHz to 960MHz
  • Coupling Factor: 10 ± 1dB
  • Insertion Loss: 1.2dB
  • Isolation: 30dB
  • Return Loss: 20dB
  • Package / Case: 0805 (2012 Metric)
  • Packaging: Tape & Reel (TR)
  • Standard Package Quantity: 4,000
  • REACH Status: Unaffected
  • ECCN: EAR99
