Same model may have multiple batches, images only for reference.

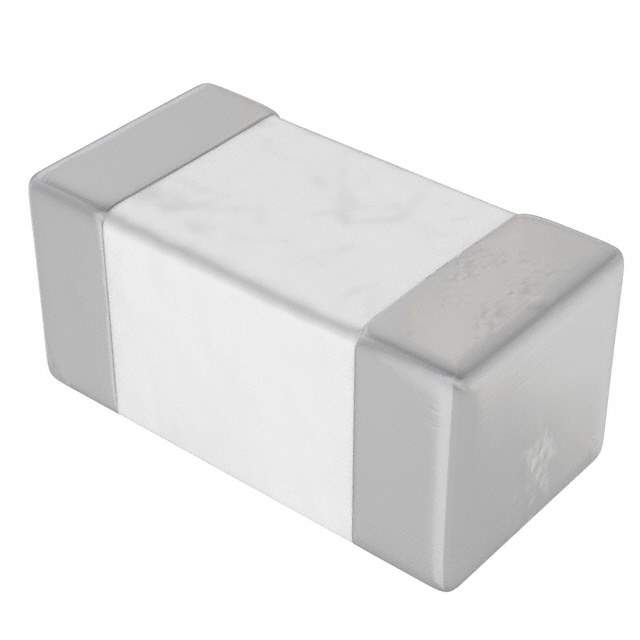

LRC0603CS1N5GV001T Real Image
Same model may have multiple batches, images only for reference.

LRC0603CS1N5GV001T

Part No LRC0603CS1N5GV001T
Manufacturer Johanson Technology Inc.
Catalog Fixed Inductors
Description FIXED IND 1.5NH 300MA 100MOHM SM / 1.5 nH Unshielded Multilayer Inductor 300 mA 100mOhm Max 0603 (1608 Metric)
Datasheet
LRC0603CS1N5GV001T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Johanson Technology Inc.
Package Tape & Reel
Type Multilayer
Material - Core Ceramic
Inductance 1.5 nH
Tolerance ±0.3nH
Current Rating (Amps) 300 mA
Shielding Unshielded
DC Resistance (DCR) 100mOhm Max
Q @ Freq 8 @ 100MHz
Frequency - Self Resonant 17GHz
Temperature Range - Operating -55°C ~ 100°C
Inductance Frequency - Test 100 MHz
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.95mm)
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1349423-LRC0603CS1N5GV001T
Ultra Librarian 3D Model Ultra Librarian LRC0603CS1N5GV001T CAD Model

Description

The LRC0603CS1N5GV001T is a fixed inductor that is made of ceramic material.

  • Product Name: LRC0603CS1N5GV001T
  • Material: Ceramic
  • Type: Multilayer
  • Shielding: Unshielded
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Inductance: 1.5 nH
  • Standard Package: 4,000
  • Tolerance: ±0.3nH
  • Q @ Freq: 8 @ 100MHz
  • Frequency Self-Resonant: 17GHz
  • Mounting Type: Surface Mount
  • Package/Case: 0603 (1608 Metric)
  • DC Resistance (DCR): 100mOhm Max
  • Current Rating (Amps): 300 mA
  • Temperature Range: -55°C ~ 100°C
  • REACH: Unaffected
