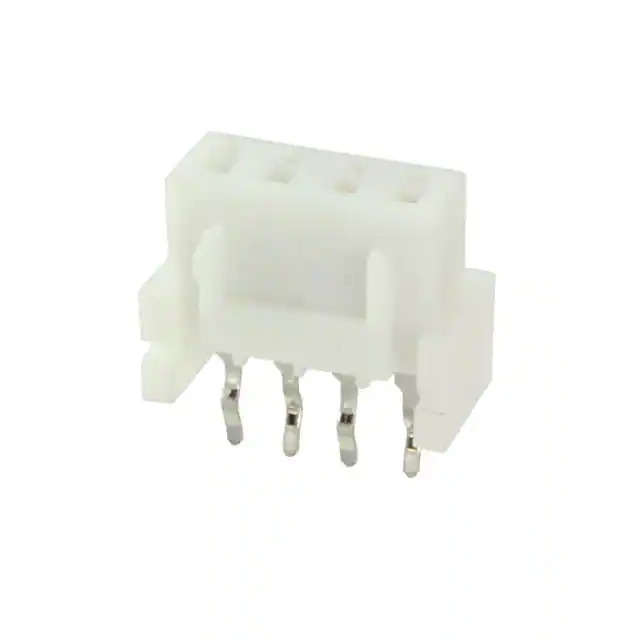

04JQ-BT JST Sales America Inc.
Same model may have multiple batches, images only for reference.

04JQ-BT

Part No 04JQ-BT
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT 4POS 0.098 TIN PCB / 4 Position Receptacle Connector 0.098" (2.50mm) Through Hole Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr JST Sales America Inc.
Series JQ
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.098" (2.50mm)
Number of Rows 1
Row Spacing - Mating -
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Insulation Color Natural
Insulation Height 0.374" (9.50mm)
Contact Length - Post -
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post -
Mated Stacking Heights 11.8mm
Ingress Protection -
Features -
Current Rating (Amps) 3A
Voltage Rating 250V
Applications -
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post -
Base Product Number 04JQ
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364414-04JQ-BT
Ultra Librarian 3D Model Ultra Librarian 04JQ-BT CAD Model

Description

The 1364414-04JQ-BT is a female socket header connector from JST Sales America Inc.

  • Series: JQ
  • Base Product Number: 04JQ
  • Number of Positions: 4
  • Number of Rows: 1
  • Pitch: 0.098" (2.50mm)
  • Mounting Type: Through Hole
  • Operating Temperature: -25°C to 85°C
  • Current Rating: 3A
  • Connection Style: Board to Board
  • Termination: Press-Fit, Solder
  • Fastening Type: Friction Lock
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Color: Natural
  • Voltage Rating: 250V
  • Mated Stacking Height: 11.8mm
  • Product Status: Active
  • Packaging: Bulk
