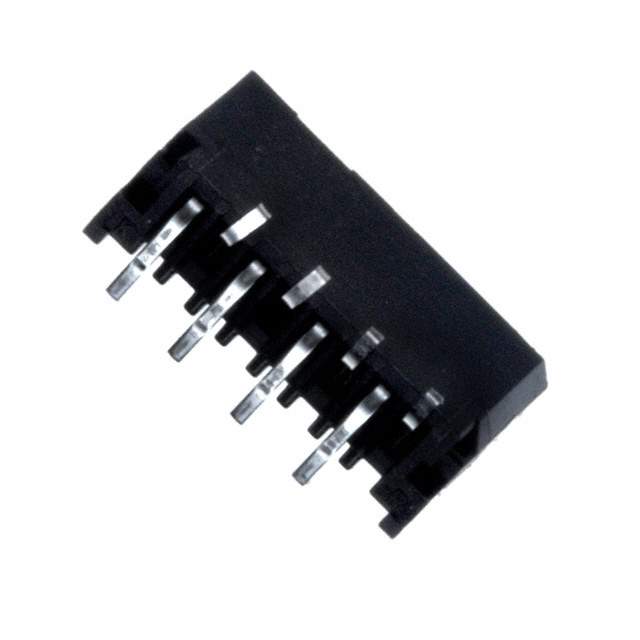

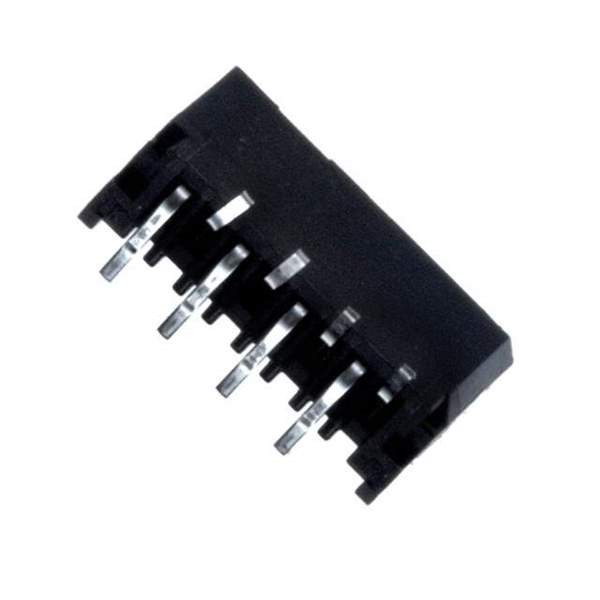

08FMN-BMTTN-A-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

08FMN-BMTTN-A-TF(LF)(SN)

Part No 08FMN-BMTTN-A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 8POS 1.00MM SMD / 8 Position FFC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr JST Sales America Inc.
Series FMN
Package Tape & Reel
Flat Flex Type FFC
Mounting SMD (SMT)
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 8
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.201" (5.10mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Features Low Insertion Force (LIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Base Product Number 08FMN-BM
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 08FMNBMTTNATFLFSN,455-1926-6,455-1926-1,455-1926-2
Standard Package 1,000
Win Source Part Number 1009736-08FMN-BMTTN-A-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 08FMN-BMTTN-A-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1009736-08FMN-BMTTN-A-TF(LF)(SN) is an 8-position FFC/FPC connector with low insertion force feature.

  • Contact Type: vertical-1 sided
  • Cable End Type: designed for straight cable end type
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Height above board: 0.201" (5.10mm)
  • FFC/FCB Thickness: 0.30mm
  • Connector Material: made of polyamide (PA6T), Nylon 6T
  • Housing Color: black
  • Suitability: suitable for use in applications where a reliable and secure connection is required
  • Operating Temperature Range: -25°C to 85°C
