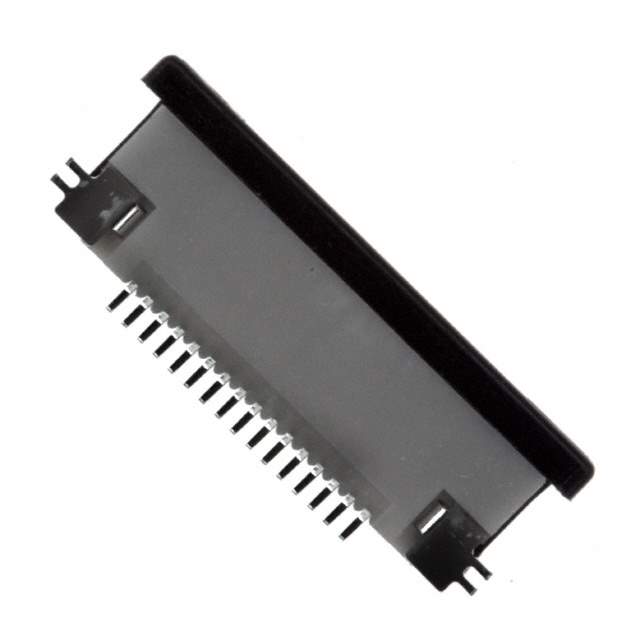

16FLZ-SM2-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

16FLZ-SM2-TB(LF)(SN)

Part No 16FLZ-SM2-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 16POS 0.50MM R/A  /  16 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr JST Sales America Inc.
Series FLZ
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 16
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Actuator Material Polyamide (PA6T), Nylon 6T
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Gray
Actuator Color Black
Base Product Number 16FLZ-SM
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 455-1972-6,455-1972-2,455-1972-1,16FLZSM2TBLFSNP,16FLZ-SM2-TB(LF)(SN)(P)
Standard Package 2,800
Win Source Part Number 979649-16FLZ-SM2-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 16FLZ-SM2-TB(LF)(SN) CAD Model

Description

The FLZ series FFC/FPC connectors are designed for high-density interconnection of FFC/FPC cables.

  • Positions: 16
  • Pitch: 0.020 inches (0.50mm)
  • Contact Material: phosphor bronze
  • Contact Finish: tin
  • Housing Material: polyamide (PA6T)
  • Housing Color: gray
  • Suitable for FFC/FPC Thickness: 0.30mm
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Mounting: surface mount, right-angle
  • Temperature Range: -25°C to 85°C
