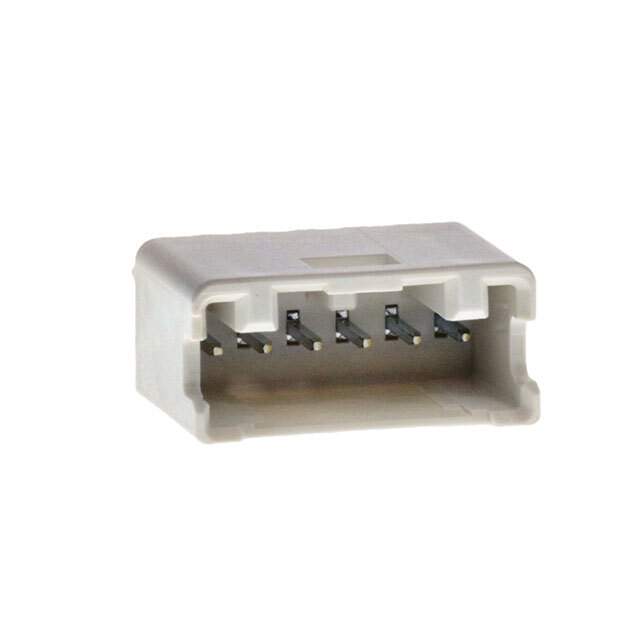

B06B-PNISK-1A(LF)(SN)(F) Real Image
Same model may have multiple batches, images only for reference.

B06B-PNISK-1A(LF)(SN)(F)

Part No B06B-PNISK-1A(LF)(SN)(F)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2MM / Connector Header Through Hole 6 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PNI
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.402" (10.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 100V
Mated Stacking Heights 12.25mm
Base Product Number B06B-PNI
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2742,B06B-PNISK-1A (LF)(SN) (F),B06BPNISK1ALFSNF
Standard Package 350
Win Source Part Number 1005463-B06B-PNISK-1A(LF)(SN)(F)
Ultra Librarian 3D Model Ultra Librarian B06B-PNISK-1A(LF)(SN)(F) CAD Model

Description

The 1005463-B06B-PNISK-1A(LF)(SN)(F) is a male pin header connector with six positions and a latch lock fastening type, manufactured by JST Sales America Inc.

  • Pitch: 0.079 inches (2.00mm)
  • Voltage Rating: 100V
  • Current Rating: 3A
  • Termination: press-fit and solder terminable
  • Housing Material: polyamide (PA66), nylon 6/6, glass-filled
  • Insulation Color: natural
  • Mounting: through-hole mountable
  • Style: board to cable/wire
  • Temperature Range: -25°C to 85°C
