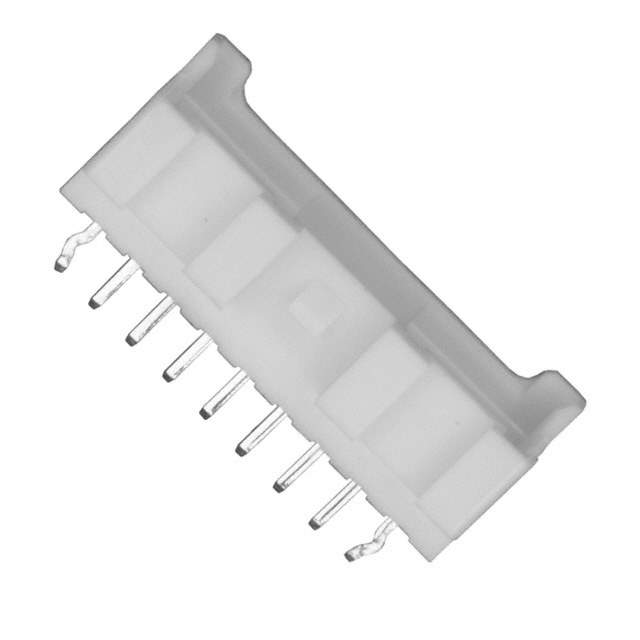

B09B-PASK(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B09B-PASK(LF)(SN)

Part No B09B-PASK(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 9POS 2MM  /  Connector Header Through Hole 9 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.126" (3.20mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.319" (8.10mm)
Insulation Height 0.303" (7.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.9mm, 14.7mm, 14.9mm
Base Product Number B09B-PAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-1824
Standard Package 500
Win Source Part Number 966788-B09B-PASK(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B09B-PASK(LF)(SN) CAD Model

Description

The 966788-B09B-PASK(LF)(SN) is a male pin header connector with 9 positions loaded all in a single row.

  • Number of Positions Loaded: 9
  • Fastening: Locking Ramp
  • Termination: Kinked Pin Solder
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Mated Stacking Heights: 9.9mm, 14.7mm, 14.9mm
  • Insulation Material: Polybutylene Terephthalate (PBT) Glass-Filled
  • Flammability Rating: UL94 V-0
  • Shrouding: 4 Walls
  • Contact Shape: Square
  • Operating Temperature Range: -25°C to 85°C
  • Application: Board to Cable/Wire
  • Package: Bulk of 500
