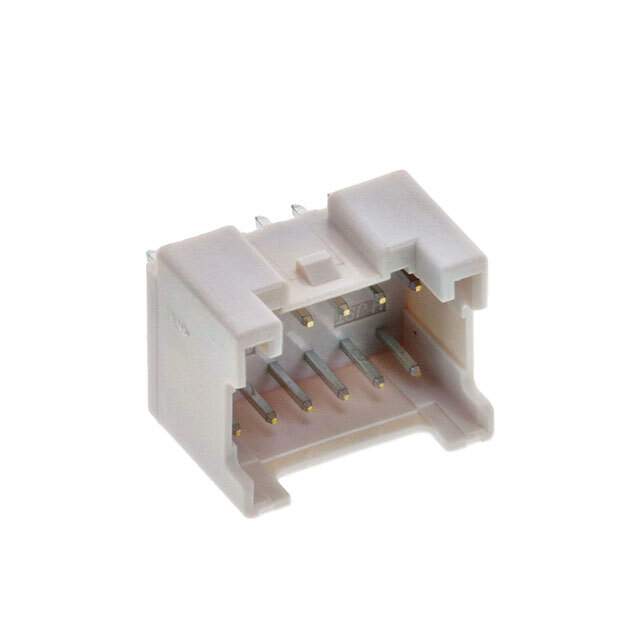

B12B-PNDZS-1(T)(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B12B-PNDZS-1(T)(LF)(SN)

Part No B12B-PNDZS-1(T)(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2MM / Connector Header Through Hole 12 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PND
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.197" (5.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Ivory
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 12.9mm
Base Product Number B12B-PND
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names B12B-PNDZS-1TLFSN,455-2324,B12BPNDZS1TLFSN,B12B-PNDZS-1T(LF)(SN)
Standard Package 512
Win Source Part Number 1179846-B12B-PNDZS-1(T)(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B12B-PNDZS-1(T)(LF)(SN) CAD Model

Description

The PND series of rectangular connectors from JST Sales America Inc. is a header connector with 12 positions and a board guide feature.

  • Positions: 12
  • Board Guide: Yes
  • Connector Type: Header
  • Pin Type: Male
  • Mounting Type: Through-Hole
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Package: Tray
  • Design: Shrouded (4 Walls)
  • Height: 0.390" (9.91mm)
  • Row Spacing: 0.197" (5.00mm)
  • Contact Length (Post): 0.126" (3.20mm)
  • Contact Shape: Square
