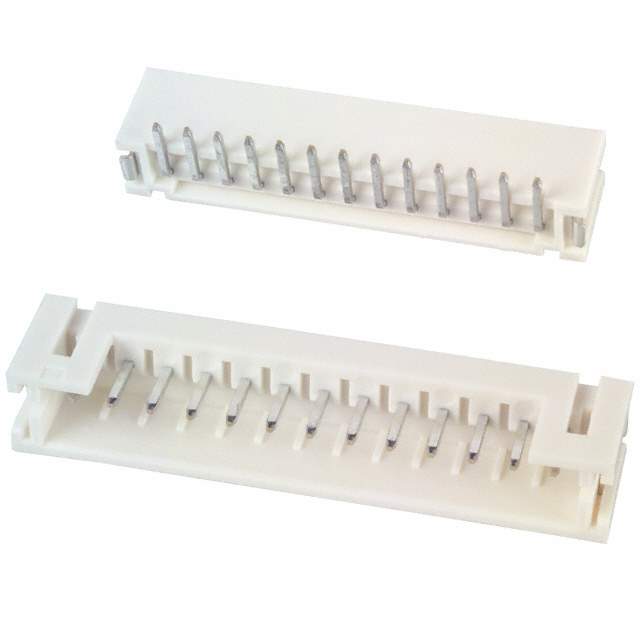

B13B-PH-SM3-TB

Name: B13B-PH-SM3-TB
Brand: JST Sales America Inc.
SKU: 737103
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	B13B-PH-SM3-TB
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	Disconnectable Crimp style connectors
Datasheet	B13B-PH-SM3-TB Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Series	PH
Packaging	Reel - TR
Part Status	Obsolete(EOL)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Mounting	SMD
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.134" (3.39mm)
Insulation Height	0.260" (6.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA46), Nylon 4/6
Features	Solder Retention
Operating Temperature Range	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating	2A
Voltage Rating	100V
Mated Stacking Heights	8.6mm
RoHS State	Request Verification
Win Source Part Number	737103-B13B-PH-SM3-TB
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PH
Introduction Date	October 18, 2005
ECCN	EAR99
Estimated EOL Date	Obsolete
Ultra Librarian 3D Model	Ultra Librarian B13B-PH-SM3-TB CAD Model

Alternative Products

Description

The JST Sales America Inc. 737103-B13B-PH-SM3-TB is a header connector that has 13 positions and is designed for board to cable/wire connections.

Positions: 13
Connection Type: Board to Cable/Wire
Contact Type: Male Pin
Fastening Type: Detent Lock
Material: Copper Alloy
Series: PH
Pitch: 0.079 inches
Mated Stacking Height: 8.6mm
Insulation Material: Polyamide (PA46), Nylon 4/6
Flammability Rating: UL94 V-0
Supply and Demand Status: Limited
