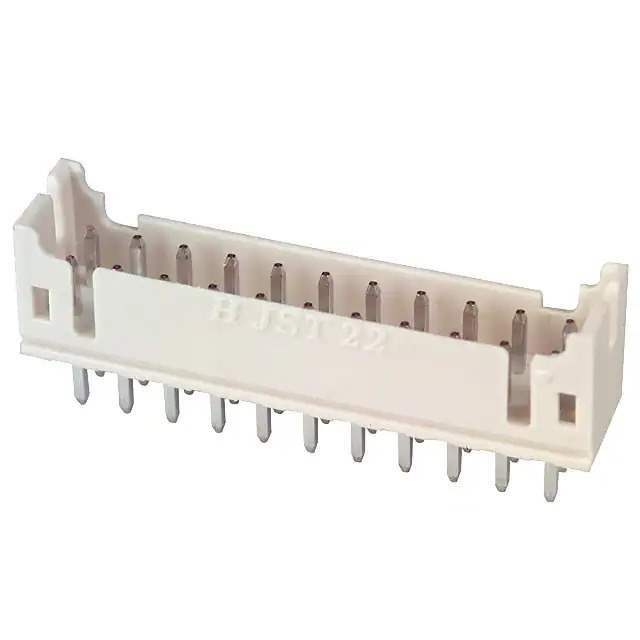

B22B-PHDSS Real Image
Same model may have multiple batches, images only for reference.

B22B-PHDSS

Part No B22B-PHDSS
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 22POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PHD
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 22
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.114" (2.90mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.291" (7.40mm)
Insulation Height 0.256" (6.50mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 8.8mm
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849795-B22B-PHDSS
Ultra Librarian 3D Model Ultra Librarian B22B-PHDSS CAD Model

Description

The 849795-B22B-PHDSS is a 22-position header connector from the PHD series.

  • Series: PHD
  • Connector Type: Header, Male Pins
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Packaging: Bulk
  • Contact Material: Copper Alloy, Tin-Lead Finish
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Mounting: Through-Hole
  • Shrouded: Yes (4-Wall)
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Mating Pitch: 0.079" (2.00mm)
  • Contact Length: 0.118" (3.00mm)
  • Product Status: Obsolete
  • Standard Package: 250 pcs
