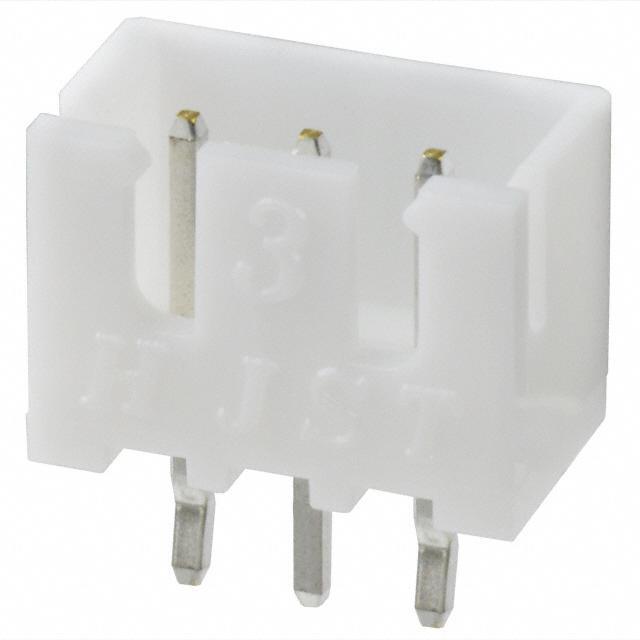

B3B-XH-A

Part No B3B-XH-A
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER XH TOP 3POS 2.5MM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.50mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.276" (7.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 9.8mm
Win Source Part Number 68769-B3B-XH-A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B3B-XH-A CAD Model

Description

Product Overview

The B3B-XH-A is a high-quality electronic component designed for reliable performance in various applications. This connector offers superior connectivity and is widely recognized for its use in demanding electronic projects.

Features and Benefits

  • Durability: Made from robust materials ensuring long-term reliability.
  • Compact Design: Its small size allows for easy integration into different systems.
  • Versatility: Can be used in multiple applications across diverse industries.
  • Cost-Effective: Offers excellent value for money without compromising on quality.

Applications

  • Consumer Electronics
  • Automotive Systems
  • Industrial Equipment
  • Communications Devices

With its impressive attributes, the B3B-XH-A is an ideal choice for engineers and designers seeking dependable connectivity solutions.
