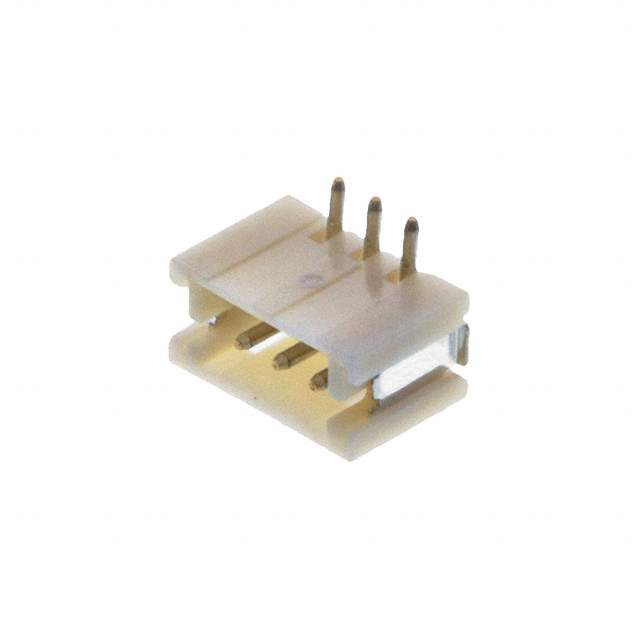

B3B-ZR-SM4-TFT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B3B-ZR-SM4-TFT(LF)(SN)

Part No B3B-ZR-SM4-TFT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 3POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.197" (5.00mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 6.4mm
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809052-B3B-ZR-SM4-TFT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B3B-ZR-SM4-TFT(LF)(SN) CAD Model

Description

The JST Sales America Inc. B3B-ZR-SM4-TFT(LF)(SN) is a 3-position SMD header connector that is designed for use in board-to-cable/wire applications.

  • Pitch-Mating: 0.059" (1.50mm)
  • Contact Finish-Mating: Tin
  • Package: Reel
  • Shrouding: 4 Wall, Shrouded
  • Supply and Demand: Limited
