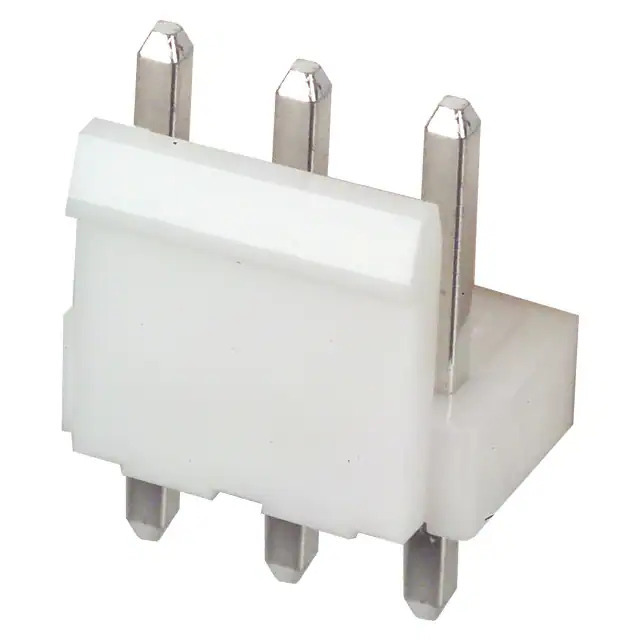

Same model may have multiple batches, images only for reference.

B3P-VH

Name: B3P-VH
Brand: JST Sales America Inc.
SKU: 1354808
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	B3P-VH
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 3POS 3.96MM / Connector Header Through Hole 3 position 0.156" (3.96mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	VH
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	3
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.303" (7.70mm)
Contact Length - Post	0.146" (3.70mm)
Overall Contact Length	0.575" (14.60mm)
Insulation Height	0.370" (9.40mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	10A
Voltage Rating	250V
Mated Stacking Heights	16.5mm
Contact Finish Thickness - Post	-
Applications	-
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1354808-B3P-VH
Ultra Librarian 3D Model	Ultra Librarian B3P-VH CAD Model

Alternative Products

Description

The B3P-VH is a male pin header connector manufactured by JST Sales America Inc.

Mounting Type: Through Hole
Pitch: 0.156" (3.96mm)
Number of Positions: 3
Number of Rows: 1
Current Rating: 10A
Voltage Rating: 250V
Contact Material: Brass
Insulation Material: Polyamide (PA66), Nylon 6/6
Application: Board to Cable/Wire
