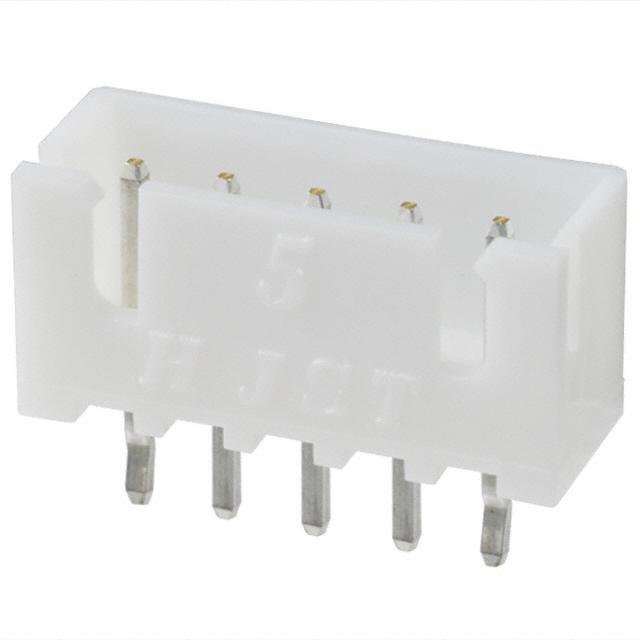

B5B-XH-A

Name: B5B-XH-A
Brand: JST Sales America Inc.
SKU: 69288
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B5B-XH-A
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER XH TOP 5POS 2.5MM
Datasheet	B5B-XH-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.50mm
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	5
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Detent Lock
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.276" (7.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C to 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating	3A
Voltage Rating	250V
Mated Stacking Heights	9.8mm
Win Source Part Number	69288-B5B-XH-A
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian B5B-XH-A CAD Model
