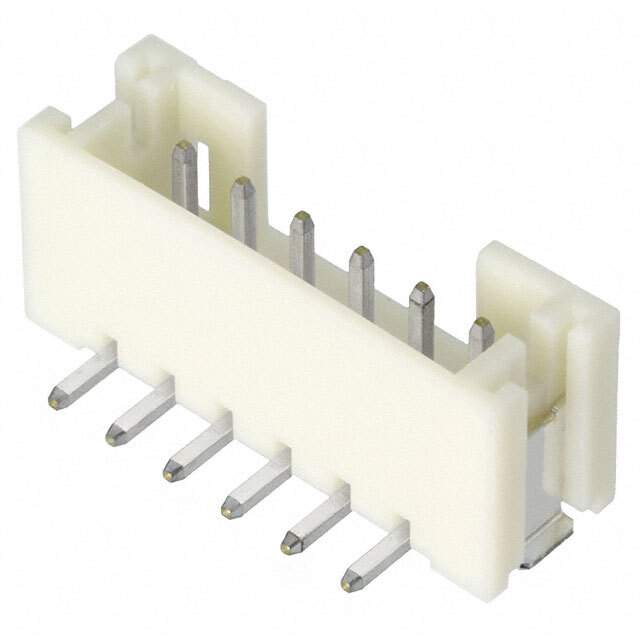

B6B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B6B-PH-SM4-TB(LF)(SN)

Part No B6B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 6POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809424-B6B-PH-SM4-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B6B-PH-SM4-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. connector is a high-quality connector designed for use in various electronic applications.

  • Mounting: Surface Mount
  • Solder Retention: Yes
  • Header Type: Header
  • Positions: 6
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Fastening Type: Detent Lock
  • Contact Material: Copper Alloy
  • Voltage Rating: 100V
  • Mated Stacking Height: 8.6mm
  • Application: Board to Cable/Wire
  • Pitch-Mating: 0.079" (2.00mm)
  • Shrouded: 4 walls
  • Insulation Color: Natural
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1,000
