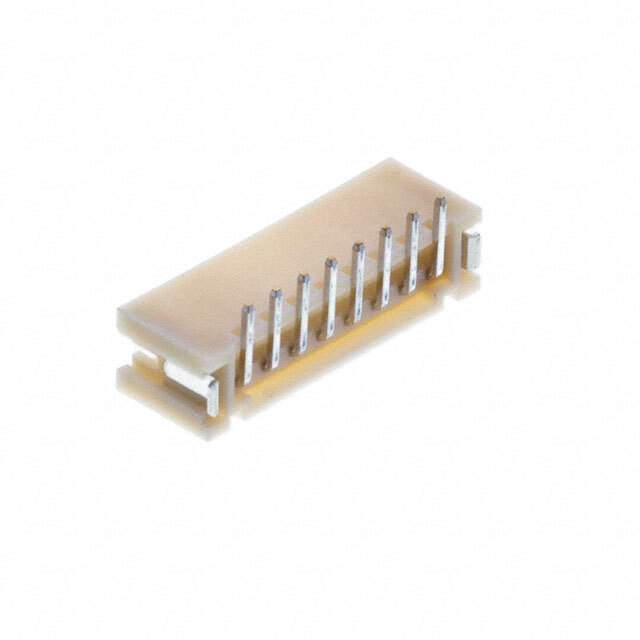

B8B-PH-SM4-TBT Real Image
Same model may have multiple batches, images only for reference.

B8B-PH-SM4-TBT

Part No B8B-PH-SM4-TBT
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Win Source Part Number 230142-B8B-PH-SM4-TBT
Popularity Low
Supply and Demand Status Balance
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Pick and Place, Solder Retention
Operating Temperature -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Ultra Librarian 3D Model Ultra Librarian B8B-PH-SM4-TBT CAD Model

Description

B8B-PH-SM4-TBT

The B8B-PH-SM4-TBT is a dependable connector component that caters to a variety of electronic assemblies, focusing on quality connections and ease of use.

  • PCB assembly in industrial electronics
  • Consumer electronics manufacturing
  • Medical device connectivity solutions

Features and Benefits

  • Highly durable with excellent conductivity
  • Streamlined design for simplified assembly
  • Facilitates efficient mating and unmating cycles

Renowned for providing secure and stable connections, this connector is an asset to any electronics project.
