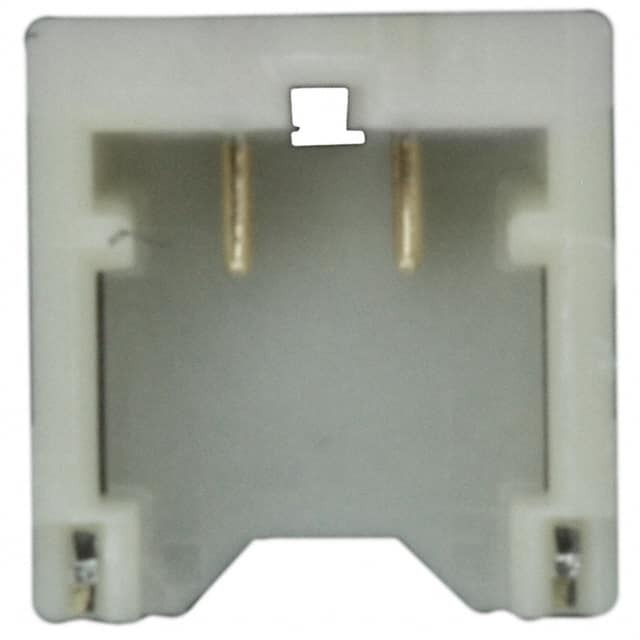

Same model may have multiple batches, images only for reference.
BM02B-ACHSS-GAN-TF(LF)(SN)
Same model may have multiple batches, images only for reference.

BM02B-ACHSS-GAN-TF(LF)(SN)

Part No BM02B-ACHSS-GAN-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 2POS 1.2MM
Datasheet
BM02B-ACHSS-GAN-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Surface Mount, Right Angle 2 position 0.047" (1.20mm)
Manufacturer JST Sales America Inc.
Series ACH
Package Reel - TR
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name BM02B-AC
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-2202-6, BM02BACHSSGANTFLFSN, 455-2202-2, BM02B-ACHSS-GAN-TFLFSN, 455-2202-1
Quantity per package 4500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 913371-BM02B-ACHSS-GAN-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM02B-ACHSS-GAN-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. 913371-BM02B-ACHSS-GAN-TF(LF)(SN) is a connector header surface mount that belongs to the BM02B-AC family.

  • Popularity: high popularity in the market
  • Supply and Demand: balance supply and demand status
  • Operating Temperature: -25°C to 85°C
  • Features: right-angle 2 position 0.047" (1.20mm) connector header surface mount
  • Win Source Part Number: 913371-BM02B-ACHSS-GAN-TF(LF)(SN)
