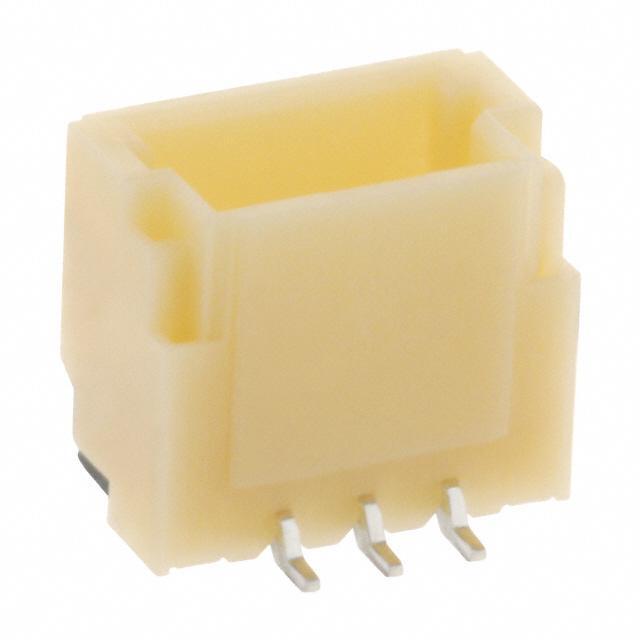

BM03B-SRSS-TB(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

BM03B-SRSS-TB(LF)(SN)

Part No BM03B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SH 3POS TOP 1MM TIN
Datasheet
BM03B-SRSS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Win Source Part Number 121656-BM03B-SRSS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BM03B-SRSS-TB(LF)(SN) CAD Model

Description

BM03B-SRSS-TB(LF)(SN) Connector

The BM03B-SRSS-TB(LF)(SN) is a compact connector tailored for applications requiring reliable and stable connections. Its versatility and durability make it suitable for numerous projects and devices.

  • Applications:
    • Robotic Systems
    • Consumer Electronics
    • Communication Devices
    • Microcontroller Boards
  • Features and Benefits:
    • Compact design for constrained spaces.
    • Durable under stressful environments.
    • Simple installation and removal process.
    • Eco-friendly lead-free construction.
  • Additional Details:
    • Excellent electrical conductivity.
    • Designed to reduce signal interference.
    • Available in multiple pin configurations.
