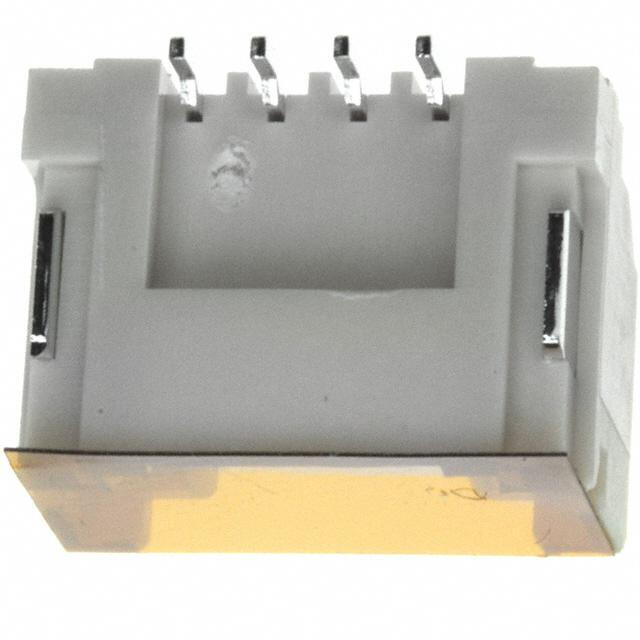

BM04B-ZESS-TBT(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

BM04B-ZESS-TBT(LF)(SN)

Part No BM04B-ZESS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT SMD 4POS ZE / Conn Shrouded Header HDR 4 POS 1.5mm Solder ST SMD T/R
Datasheet
BM04B-ZESS-TBT(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series ZE
Packaging Reel package
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.295" (7.50mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 9.4mm
Win Source Part Number 770243-BM04B-ZESS-TBT(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Family Name BM
Introduction Date January 04, 2009
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian BM04B-ZESS-TBT(LF)(SN) CAD Model

Description

The BM04B-ZESS-TBT(LF)(SN) from JST Sales America Inc. is a header connector designed for use in various electronic devices.

  • Manufacturer: JST Sales America Inc.
  • Series: ZE
  • Package: Reel
  • Positions: 4
  • Operating Temperature: -25°C ~ 85°C
  • Features: Pick and Place, Solder Retention
  • Category: Connectors and Interconnects
  • Popularity: Medium
