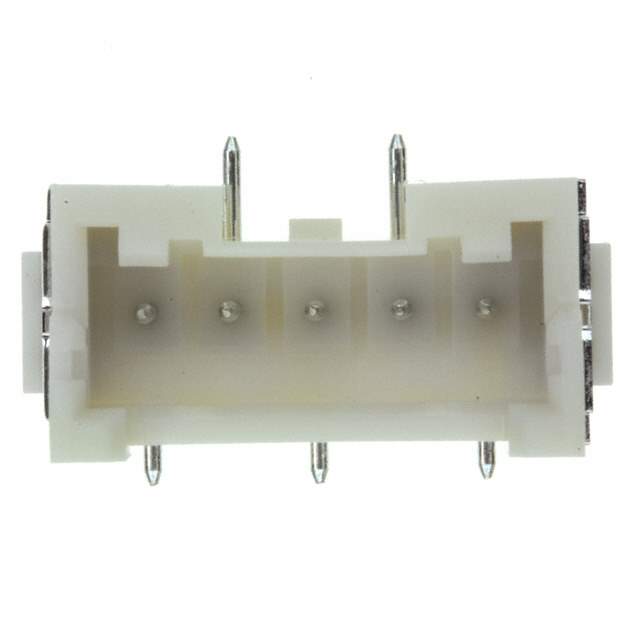

BM05B-XASS-TF(LF)(SN)

Name: BM05B-XASS-TF(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1146599
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BM05B-XASS-TF(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 5POS 2.5MM / Connector Header Surface Mount 5 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	XA
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.370" (9.40mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	11.9mm
Base Product Number	BM05B-XA
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	BM05BXASSTFLFSN,455-2024-2,455-2024-1,BM05B-XASS-TF (LF) (SN),455-2024-6,BM05B-XASS-TF (LF)(SN)
Standard Package	500
Win Source Part Number	1146599-BM05B-XASS-TF(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian BM05B-XASS-TF(LF)(SN) CAD Model

Description

JST Sales America Inc. has manufactured the 1146599-BM05B-XASS-TF(LF)(SN) electronic component.

Connector Type: Header
Features: Solder Retention and Locking Ramp
Voltage Rating: 250V
Current Rating (Amps): 3A
Pitch-Mating: 0.098 inches (2.50mm)
Package: Tape and Reel
