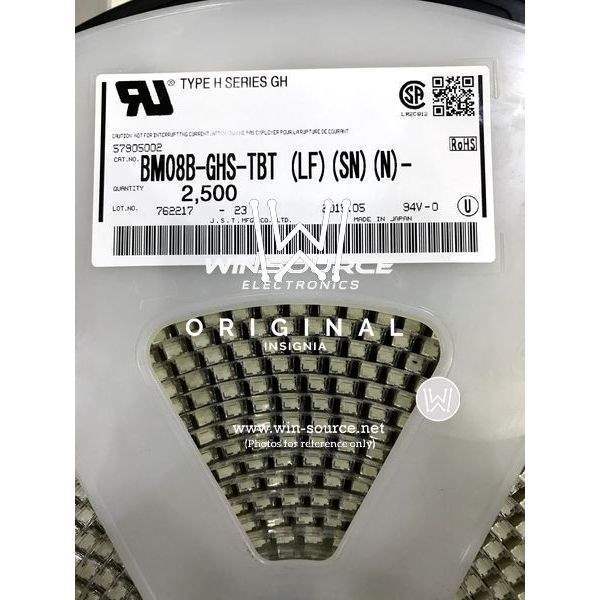

BM08B-GHS-TBT(LF)(SN)(N) JST Sales America Inc. BM08B-GHS-TBT(LF)(SN)(N) label picture
Same model may have multiple batches, images only for reference.
BM08B-GHS-TBT(LF)(SN)(N) JST Sales America Inc. BM08B-GHS-TBT(LF)(SN)(N) label picture
BM08B-GHS-TBT(LF)(SN)(N) JST Sales America Inc. BM08B-GHS-TBT(LF)(SN)(N) label picture
Same model may have multiple batches, images only for reference.

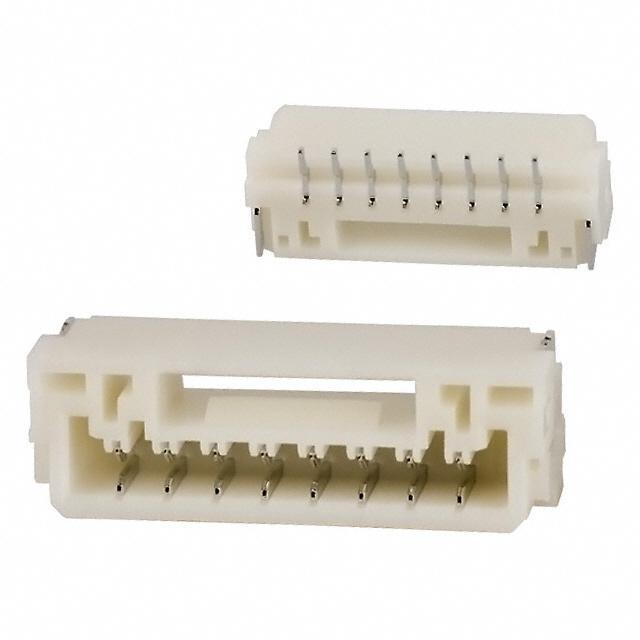

BM08B-GHS-TBT(LF)(SN)(N)

Part No BM08B-GHS-TBT(LF)(SN)(N)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER GH TOP 8POS 1.25MM / Conn Shrouded Header (4 Sides) HDR 8 POS 1.25mm Solder ST Top Entry SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.159" (4.05mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA9T), Nylon 9T
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 7.3mm
Win Source Part Number 105489-BM08B-GHS-TBT(LF)(SN)(N)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name BM08B
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian BM08B-GHS-TBT(LF)(SN)(N) CAD Model

Description

BM08B-GHS-TBT(LF)(SN)(N) Connector

This versatile connector takes the BM08B-GHS-TBT to the next level with lead-free and tin-plated options for more eco-friendly manufacturing. It's designed to cater to both industrial and consumer electronics.

  • Applications:
    • Industrial automation
    • Audio/visual equipment
    • Power management systems
  • Features and Benefits:
    • Enhanced conductivity with tin metal plating
    • Environmental compliance with lead-free materials
    • Secure locking mechanism for stability
  • Additional Details:
    • Standard connection interface
    • Suitable for various environmental conditions
    • Supports high-frequency signal transmission
