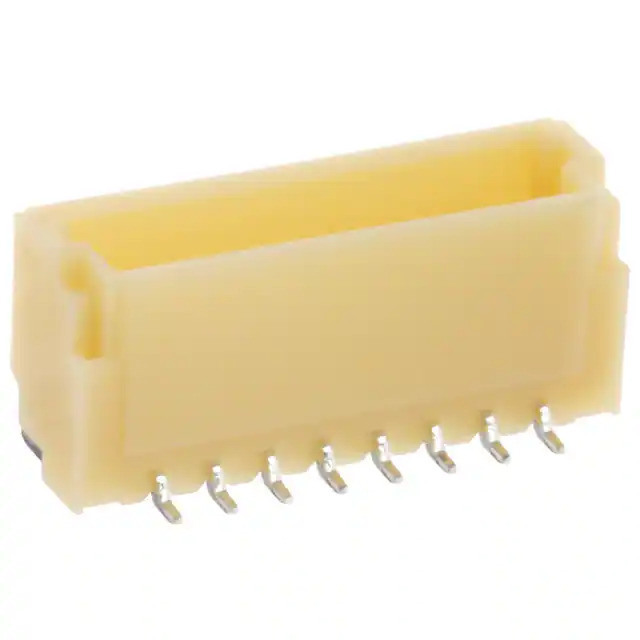

Same model may have multiple batches, images only for reference.

BM08B-SRSS-TB

Name: BM08B-SRSS-TB
Brand: JST Sales America Inc.
SKU: 1377991
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	BM08B-SRSS-TB
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 8POS 1MM / Connector Header Surface Mount 8 position 0.039" (1.00mm)
Datasheet	BM08B-SRSS-TB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	SH/SR
Package	Tape & Reel (TR)
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	8
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	-
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.167" (4.25mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A
Voltage Rating	50V
Mated Stacking Heights	4.9mm
Contact Finish Thickness - Post	-
Applications	-
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1377991-BM08B-SRSS-TB
Ultra Librarian 3D Model	Ultra Librarian BM08B-SRSS-TB CAD Model

Alternative Products

Description

The 1377991-BM08B-SRSS-TB is a male pin header connector from JST Sales America Inc.'s SH/SR series.

Series: SH/SR
Mounting Type: Surface Mount
Number of Positions: 8
Number of Rows: 1
Pitch: 0.039" (1.00mm)
Shrouding: Shrouded - 4 Wall
Fastening Type: Push-Pull
Termination: Solder
Contact Material: Copper Alloy
Insulation Material: Polyamide (PA), Nylon
Voltage Rating: 50V
Current Rating (Amp): 1A
Operating Temperature: -25°C ~ 85°C
Product Status: Obsolete
