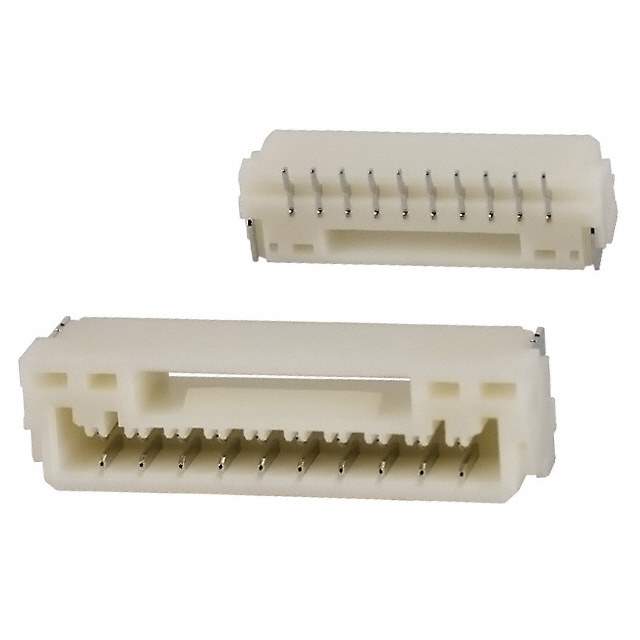

BM10B-GHS-TBT

Part No BM10B-GHS-TBT
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description 1.25mm pitch/Disconnectable Crimp style connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Uncategorized
Manufacturer JST Sales America Inc.
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 819491-BM10B-GHS-TBT
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.159" (4.05mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA9T), Nylon 9T
Features Pick and Place, Solder Retention
Operating Temperature -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Ultra Librarian 3D Model Ultra Librarian BM10B-GHS-TBT CAD Model

Description

The BM10B-GHS-TBT is a 10-position, 1.25mm pitch, crimp-style connector manufactured by JST Sales America Inc. It is part of the GHS series, known for its compact size and high reliability in wire-to-board connections.

Applications:

  • Signal connections in compact electronic devices
  • Wire-to-board connections in industrial equipment
  • Internal wiring in consumer electronics
  • Data and power transmission in small devices
  • Automotive electronics

Features:

  • Number of Positions: 10
  • Pitch: 1.25mm
  • Crimp Style Termination
  • Wire-to-Board Connector
  • GHS Series
  • Compact Design
  • High Reliability

Benefits:

  • Secure and reliable wire-to-board connection
  • Space-saving design ideal for compact devices
  • Easy and efficient crimp termination
  • Suitable for high-density applications
  • Durable construction ensures long-term performance

Additional Details:

The BM10B-GHS-TBT connector is designed for use with a specific range of wire gauges, typically 28-32 AWG. The crimp-style termination provides a gas-tight connection, ensuring long-term reliability and preventing corrosion. The compact 1.25mm pitch allows for high-density connections in space-constrained applications. The connector housing is typically made of a durable thermoplastic material that can withstand high temperatures and mechanical stress. The 'TBT' in the part number usually indicates tape and box packaging for automated assembly processes. Mating housings and crimp terminals are also available separately. Datasheets should be consulted for specific wire gauge compatibility and crimping tool recommendations.
