Same model may have multiple batches, images only for reference.

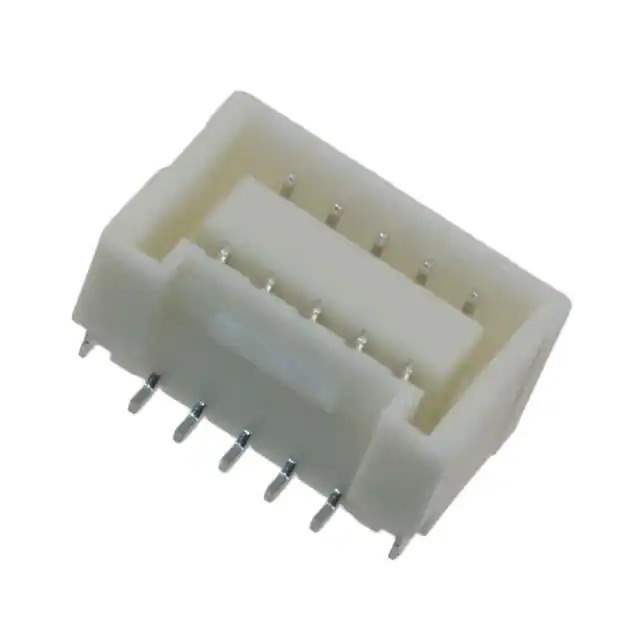

BM10B-ZPDSS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM10B-ZPDSS-TF(LF)(SN)

Part No BM10B-ZPDSS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 1.5MM / Connector Header Surface Mount 10 position 0.059" (1.50mm)
Datasheet
BM10B-ZPDSS-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZPD
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 10
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.219" (5.56mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 9.5mm
Base Product Number BM10B-ZP
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 851530-BM10B-ZPDSS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM10B-ZPDSS-TF(LF)(SN) CAD Model

Description

The 851530-BM10B-ZPDSS-TF(LF)(SN) is a male pin header connector from the ZPD series. Bold the product name: 851530-BM10B-ZPDSS-TF(LF)(SN) and manufacturer not explicitly specified.

  • Series: ZPD
  • Connector Type: Rectangular Connector
  • Number of Positions: 10
  • Pitch: 1.50mm
  • Mounting Type: Surface Mount
  • Fastening Type: Locking Ramp
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Contact Material: Copper Alloy
  • Design: Shrouded with 4 Walls
  • Insulation Material: Polyamide (PA), Nylon
