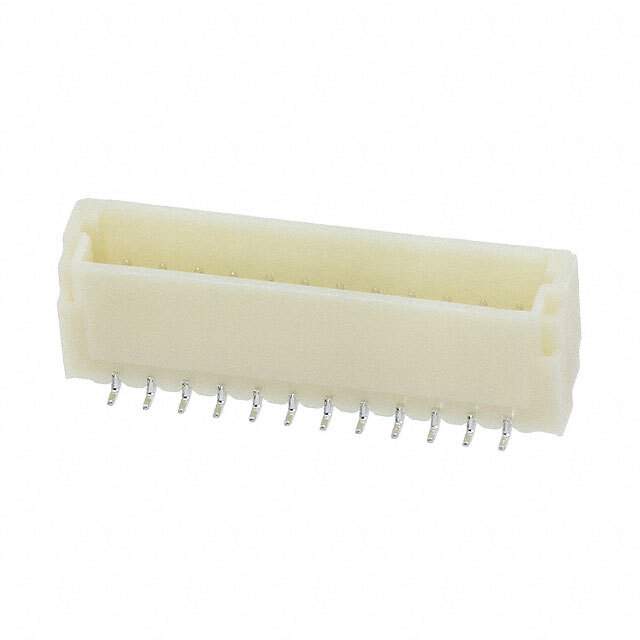

BM12B-SRSS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM12B-SRSS-TBT(LF)(SN)

Part No BM12B-SRSS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SH 12POS TOP 1MM TIN
Datasheet
BM12B-SRSS-TBT(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 12
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Win Source Part Number 1023666-BM12B-SRSS-TBT(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BM12B-SRSS-TBT(LF)(SN) CAD Model

Description

The JST Sales America Inc. BM12B-SRSS-TBT(LF)(SN) connector is a header connector designed for board-to-cable/wire connectivity.

  • Pitch: 0.039 inches (1.0mm)
  • Shrouded: with 4 walls
  • Mated Stacking Height: 4.9mm
  • Mounting: surface mount technology
  • Contact Finish: tin
  • Voltage Rating: 50V
  • Current Rating: 0.7A
  • Packaging: reel
  • Material Flammability Rating: UL94 V-0
