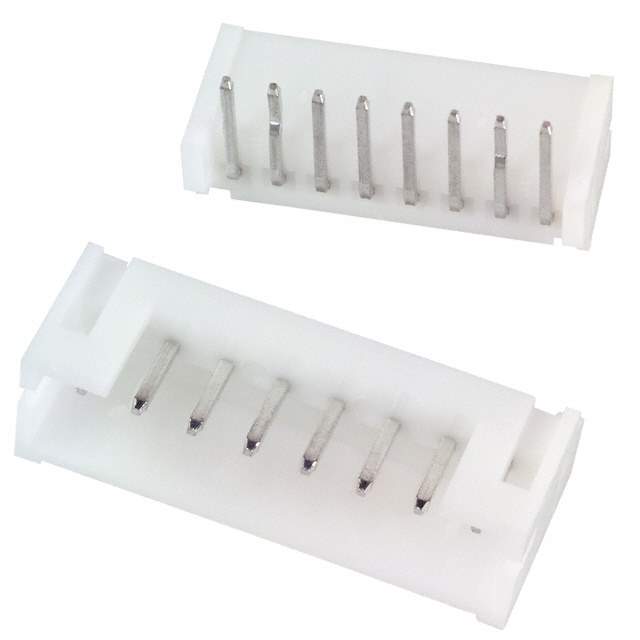

S8B-PH-K-S(LF)(SN)

Name: S8B-PH-K-S(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1293286
Availability: InStock
Rating: 4.91 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S8B-PH-K-S(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PH
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Press-Fit, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.189" (4.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A
Voltage Rating	100V
Base Product Number	S8B-PH-K
Other Names	S8BPHKSLFSN,455-1725,(W)S8B-PH-K-S(LF)(SN)
Standard Package	250
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293286-S8B-PH-K-S(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian S8B-PH-K-S(LF)(SN) CAD Model

Alternative Products

Description

The 1293286-S8B-PH-K-S(LF)(SN) is a header connector that belongs to the PH series of connectors.

Connector Series: PH
Connector Shape: Rectangular
Contact Type: Male pin
Number of Positions: 8
Positions Loaded: All
Number of Rows: 1
Fastening Type: Detent lock
Termination: Press-fit and solder
Contact Material: Brass
Voltage Rating: 100V
Shrouding: 4 Walls
Insulation Color: Natural
Temperature Range: -25°C to 85°C
Current Rating: 2A
Application: Board to cable/wire
Packaging: Bulk
Pieces per Package: 250
Contact Shape: Square
Pitch: 0.079" (2.00mm)
Insulation Material: Polyamide (PA66), Nylon 6/6
Material Flammability Rating: UL94 V-0
