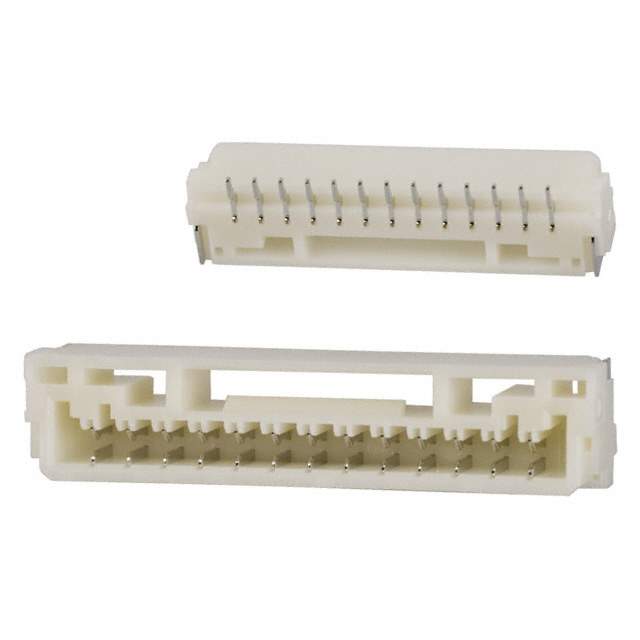

BM13B-GHS-TBT(LF)(SN)(N) Real Image
Same model may have multiple batches, images only for reference.

BM13B-GHS-TBT(LF)(SN)(N)

Part No BM13B-GHS-TBT(LF)(SN)(N)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER GH TOP 13POS 1.25MM
Datasheet
BM13B-GHS-TBT(LF)(SN)(N) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 13
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.159" (4.05mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA9T), Nylon 9T
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 7.3mm
Win Source Part Number 1023668-BM13B-GHS-TBT(LF)(SN)(N)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BM13B-GHS-TBT(LF)(SN)(N) CAD Model

Description

The BM13B-GHS-TBT(LF)(SN)(N) is a header connector, designed for use in electronic components and devices from JST Sales America Inc..

  • Positions: 13
  • Retention: Solder Retention
  • Fastening Type: Locking Ramp
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Supply and Demand Status: Balanced
