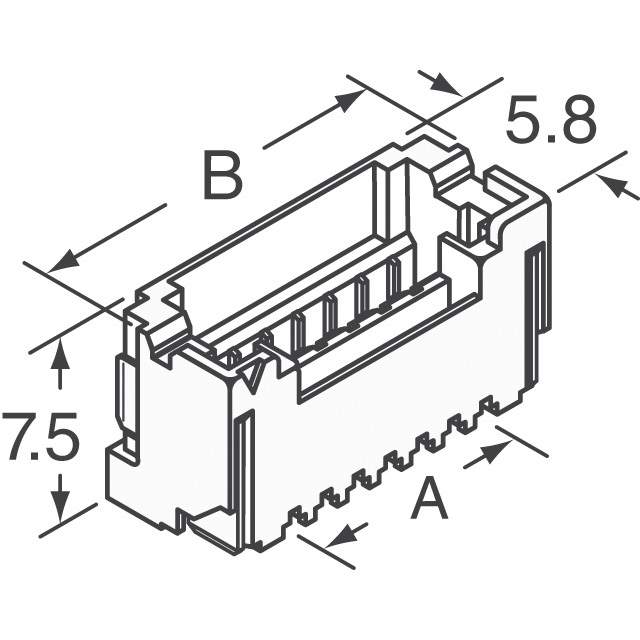

BM13B-ZESS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM13B-ZESS-TBT(LF)(SN)

Part No BM13B-ZESS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 13POS 1.5MM / Connector Header Surface Mount 13 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZE
Package Tape & Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 13
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.295" (7.50mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 9.4mm
Base Product Number BM13B-ZE
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names BM13B-ZESS-TBT(LF)(SN)-ND,455-2391-6,455-4209-6,455-4209-2,BM13B-ZESS-TBT(LF)(SN)-,455-4209-1,BM13BZESSTBTLFSN,455-2391-2-ND,455-2391-1,455-2391-2,BM13B-ZESS-TBT (LF)(SN)
Standard Package 800
Win Source Part Number 961624-BM13B-ZESS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM13B-ZESS-TBT(LF)(SN) CAD Model

Description

The BM13B-ZESS-TBT(LF)(SN) is a rectangular connector that belongs to the ZE series manufactured by JST Sales America Inc.

  • Series: ZE
  • Positions: 13
  • Application: Board to Cable/Wire
  • Pitch-Mating: 0.059" (1.50mm)
  • Package: Tape and Reel
  • Current Rating: 2A
  • Voltage Rating: 100V
  • Features: Pick and Place
