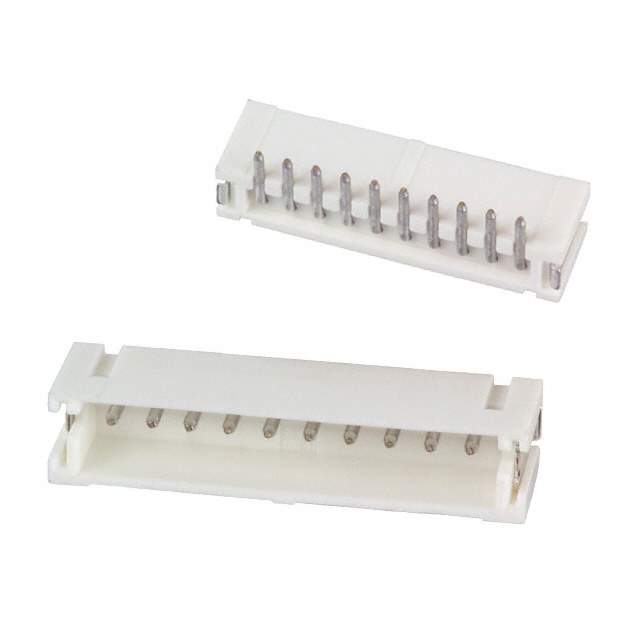

B10B-ZR-SM3-TF Real Image
Same model may have multiple batches, images only for reference.

B10B-ZR-SM3-TF

Part No B10B-ZR-SM3-TF
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZH
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.197" (5.00mm)
Contact Shape Circular
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Other Names B10BZRSM3TF,455-1305-2,455-1305-1
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293234-B10B-ZR-SM3-TF
Ultra Librarian 3D Model Ultra Librarian B10B-ZR-SM3-TF CAD Model

Description

The JST Sales America Inc. ZH series header connector is a surface mount connector with a pitch of 0.059 inches (1.50mm).

  • Series: ZH
  • Mounting Type: Surface Mount
  • Pitch: 0.059 inches (1.50mm)
  • Positions: 10
  • Current Rating: 1A
  • Contact Material: Brass
  • Contact Finish: Tin-Lead
  • Housing Material: Polyamide (PA46)
  • Housing Color: Natural
  • Wire Gauge: 22-28 AWG
  • RoHS Compliance: Non-Compliant
  • Status: Obsolete
