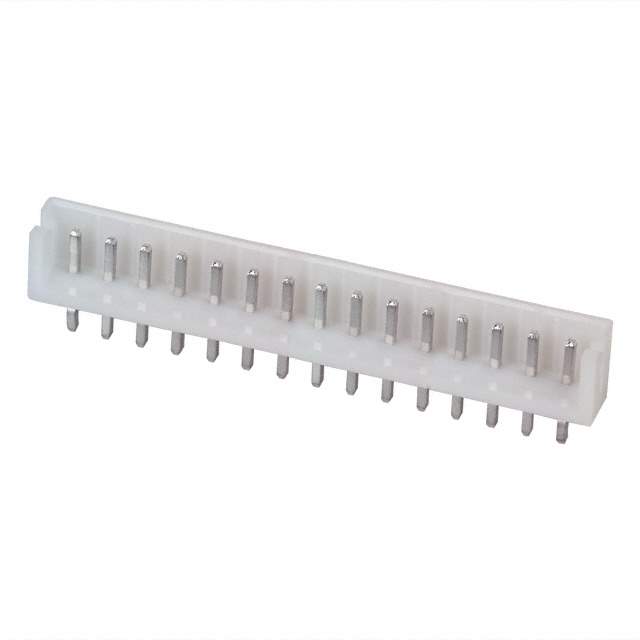

B15B-EH-A(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B15B-EH-A(LF)(SN)

Part No B15B-EH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 15POS 2.5MM / Connector Header Through Hole 15 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series EH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 15
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Friction Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66) , Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 8.1mm
Base Product Number B15B-EH
Standard Package 250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350040-B15B-EH-A(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B15B-EH-A(LF)(SN) CAD Model

Description

The JST Sales America Inc. EH Series 15 position header male pin connector is a rectangular connector that is part of the category of connectors.

  • Termination: Press-Fit, Solder
  • Fastening Type: Friction Lock
  • Packaging: Bulk
  • Standard Package: 250
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: Natural
  • Contact Finish: Tin (Mating and Post)
  • Contact Shape: Square
  • Application: Board to Cable/Wire
  • Pitch (Mating): 0.098 inches (2.5mm)
  • Contact Length: 0.130 inches (3.30mm)
